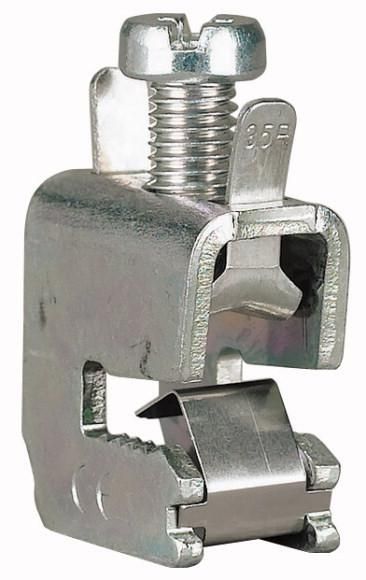

Universal conductor connection terminals, 4-35qmm, AWG 10-AWG 2., directly clamped, 3x9x0.8 or 6x9x0.8, 270A, can be used for all 5mm thick flat rails, width=15.5mm, terminal space WxH=10.5x11mm, with integrated retaining spring, open terminal space and captive clamping screw, can be used for SASY60i, SASY185i,
Property | Value |
Busbar thickness: | 5 mm |
Max. conductor cross-section: | 35 mm² |
Max. rated operating current Ie: | 270 A |
Suitable for: | Flat bar |
Suitable for sector conductor connection: | yes |
Suitable for strip conductor connection: | yes |
Width of terminal: | 15.5 mm |
Suitable for round conductor connection: | yes |
