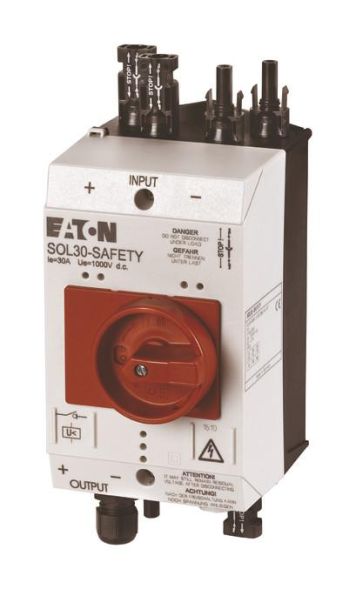

Firefighter switch, protection class: IP65, standards and regulations: IEC/EN 60 947-3
| Property | Value |
| Number of poles: | 2 |
| Number of auxiliary contacts as changeover contacts: | 1 |
| Rated continuous current Iu: | 32 A |
| Max. Rated operating voltage Ue at AC: | 1000 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | Cable clamp |
| Device design: | Complete device in housing |
| Design of the actuating element: | Toggle |
| Suitable for floor mounting: | yes |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | no |
| Version as Maintenance/repair switch: | yes |
| Voltage release optional: | yes |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 0.36 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 1000 V |
| Switching capacity at 400 V: | 30 kW |
| Number of switches: | 1 |
| Protection class (NEMA): | other |
Features
Number of auxiliary contacts as changeover contacts
1
HAB
SOL30-SAFETY/2MV-U (230V50HZ) 30A MV
Manufacturer
HAN
144123
GTIN
4015081406333
Connection type main circuit
Cable clamp
Number of switches
1
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Gag
Rated operating voltage
1000V
Rated continuous current Iu
32 A
Rated short-time withstand current Icw
0.36kA
Color of the actuator
Black
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Complete device in housing
Max. rated operating voltage Ue at AC
1000V
Motor drive integrated
No
Motor drive optional
No
Number of poles
2
Switching capacity at 400 V
30kW
Protection class (IP), front
IP65
Protection class (NEMA)
Other
Voltage release optional
Yes
Lockable
No
