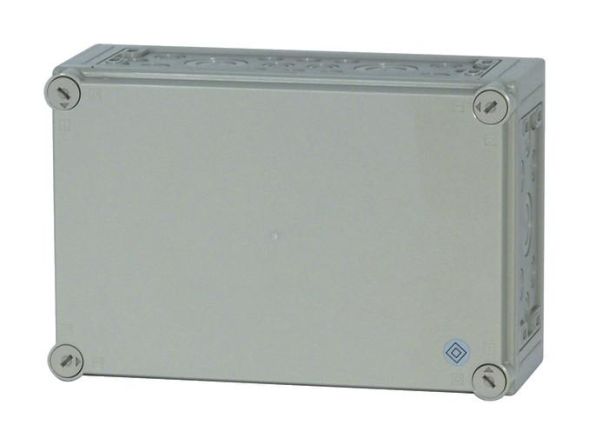

Single empty housing, material polycarbonate, impact-resistant, protection class IP65, patented cover lock with integrated overpressure compensation, with metric pre-punched holes in all side walls, cable entries at the top and bottom each = 2xM50/32 and 6xM25/16 and 8xM20, side each = 1xM50/32 and 6xM25/16, fastening tabs for wall mounting, sealable cover locks, side walls can be knocked out, can be converted into a distributor housing by knocking out the side walls, RAL 7035 grey (base box), RAL 7035 grey (cover), installation depth with mounting plate = 125mm, cover design: opaque, lower part design: pre-punched, cover can optionally be retrofitted with cylinder lock DVZ...-CI
| Property | Value |
| Height: | 375 mm |
| Width: | 250 mm |
| Depth: | 150 mm |
| Installation depth: | 125 mm |
| Inner depth: | 125 mm |
| Protection class (IP): | other |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 76 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 4 |
| Type of cover: | without |
| Type of Door: | without |
| Cover design: | closed |
| Width in modular units: | 15 |
| Functional integrity: | without |
| Material thickness housing: | 6 mm |
| Material thickness door/cover: | 6 mm |
| With lock: | no |
| Rated current (In): | 1600 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
Features
HAB
CI43E-125-RAL7035 250x375x150mm
Manufacturer
HAN
194611
GTIN
9010238058293
Cultivation option
Yes
Number of cable entries
76
Number of modules
1
Number of openings for flange plates
4
Type of cover
Without
Type of door
Without
Cover design
Closed
Width
250 mm
Width in pitch units
15
Installation depth
125 mm
Color
Functional preservation
Without
Suitable for outdoor use
Yes
Suitable for lightning protection
Yes
Height
375 mm
Internal depth
125 mm
Housing material thickness
6 mm
Material thickness door/lid
6 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
Nominal current (In)
1600A
Surface
Untreated
RAL number
7035
Impact resistance
IK10
IP protection)
Other
Protection class (NEMA)
Other
Protection class
II
Depth
150 mm
Transparent lid/door
No
Housing material
Plastic
