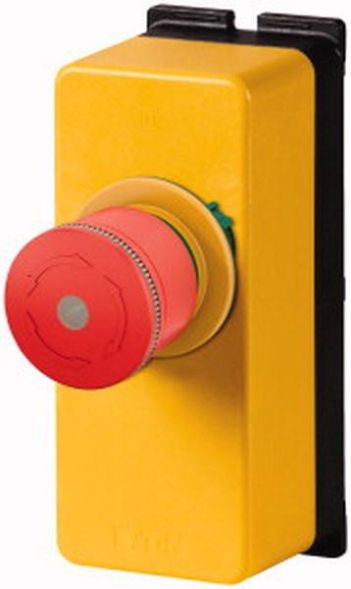

Housing, product range: RMQ-Titan, complete device, design: mushroom shape, diameter: 30 mm, can be illuminated with LED element, twist release, connection type: Cage Clamp, description: foolproof in accordance with ISO 13850/EN 418, Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH, Minden, reset by turning, command points: 1 number, mushroom plunger color: red, button base color: yellow, housing cover color: yellow, RAL color: RAL 3000, LED color: red/green, protection class: IP65, IP66, IP69, connection to SmartWire-DT: no, contact configuration NC = normally closed: 2 NC, contact configuration Note = safety function, through positive opening in accordance with IEC/EN 60947-5-1, travel of the operating part and actuation force in accordance with DIN EN 60947-5-1, K.5.4.1 Positive opening travel: mm 5.5, maximum travel: mm 5.8, Positive opening (ZW): yes, Standards and regulations: IEC/EN 60947,0660, Installation position: As required
| Property | Value |
| Number of contacts as normally closed: | 2 |
| Number of indicator lights: | 1 |
| Color of the upper part of the housing: | yellow |
| Suitable for EMERGENCY STOP: | yes |
| Number of command points: | 1 |
| Number of mushroom buttons: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 24 to 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 to 230 V |
| Rated control supply voltage Us at DC: | 24 to 220 V |
| Housing material: | Plastic |
| Protection class (IP): | other |
| Protection class (NEMA): | other |
