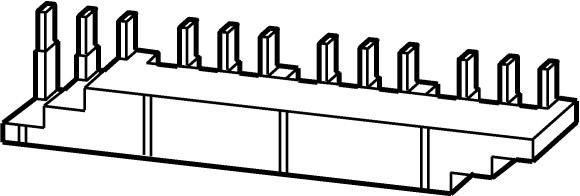

Three-pole three-phase busbar block for feeding in 4 PKZM4-... without side-mounted auxiliary switches or voltage releases, extendable by rotated assembly, length 220mm, touch-safe, Ue = 690 V, Iu = 128 A
| Property | Value |
| Number of poles: | 3 |
| Number of phases: | 3 |
| Length: | 205 mm |
| Rated continuous current Iu: | 128 A |
| Max. Rated operating voltage Ue: | 690 V |
| Insulated: | yes |
| Suitable for number of devices: | 4 |
| Suitable for devices with N conductor: | no |
| Pitch: | 55 mm |
| Suitable for devices with auxiliary switch: | no |
| Design of the electrical connection: | pin |
| Rated impulse voltage: | 6 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
4
Pitch dimension
55 mm
Rated surge voltage
6 kV
HAB
B3.0/4-PKZ4
Manufacturer
HAN
220222
GTIN
4015082202224
Number of phases
3
Design of the electrical connection
Pen
Rated continuous current Iu
128 A
Isolated
Yes
Length
205 mm
Max. rated operating voltage Ue
690V
Number of poles
3
