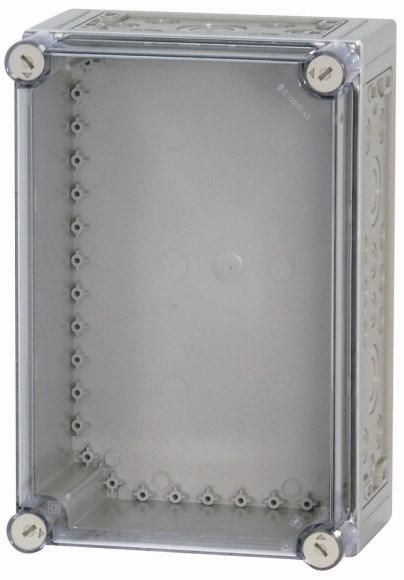

Single empty housing, material polycarbonate, impact-resistant, protection class IP65, patented cover closure with integrated overpressure compensation, with metric pre-punched holes in all side walls, cable entries at the top and bottom each = 2xM50/32 and 6xM25/16 and 8xM20, at the side each = 1xM50/32 and 6xM25/16, fastening tabs for wall mounting, sealable cover closures, side walls can be knocked out, can be converted into a distributor housing by knocking out the side walls, RAL 7035, grey (base box), transparent smoke grey (cover), installation depth with mounting plate = 150mm, cover design: transparent smoke grey, lower part design: pre-punched, cover can optionally be retrofitted with cylinder lock DVZ...-CI
| Property | Value |
| Height: | 250 mm |
| Width: | 375 mm |
| Depth: | 175 mm |
| Installation depth: | 150 mm |
| Inner depth: | 150 mm |
| Protection type (IP): | IP65 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | yes |
| Surface: | other |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 76 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 4 |
| Type of cover: | without |
| Type of Door: | without |
| Cover design: | closed |
| Width in modular units: | 15 |
| Functional integrity: | other |
| Material thickness housing: | 6 mm |
| Material thickness door/cover: | 6 mm |
| With lock: | no |
| Rated current (In): | 1600 A |
| Transparent cover/door: | yes |
| Color: | gray |
| Protection class (NEMA): | other |
Features
HAB
CI43E-150
Manufacturer
HAN
095506
GTIN
4015080955061
Cultivation option
Yes
Number of cable entries
76
Number of modules
1
Number of openings for flange plates
4
Type of cover
Without
Type of door
Without
Cover design
Closed
Width
375 mm
Width in pitch units
15
Installation depth
150 mm
Color
Functional preservation
Other
Suitable for outdoor use
Yes
Suitable for lightning protection
Yes
Height
250 mm
Internal depth
150 mm
Housing material thickness
6 mm
Material thickness door/lid
6 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
Nominal current (In)
1600A
Surface
Other
RAL number
7035
Impact resistance
IK10
IP protection)
IP65
Protection class (NEMA)
Other
Protection class
II
Depth
175 mm
Transparent lid/door
Yes
Housing material
Plastic
