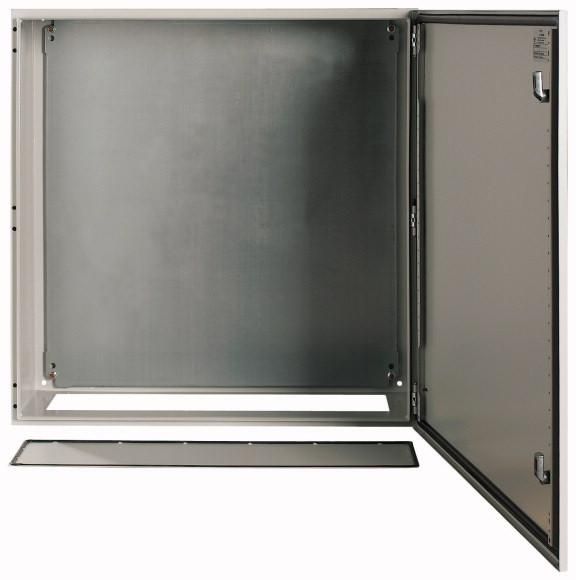

Wall housing CS, door with continuous foamed polyurethane seal, shock resistance category IK09 according to EN 62262, base plate with foamed seal, seal protected in the deep-drawn area, single door, door hinge on the right, door opening angle 120°, door hinge pins with quick-change technology, door profile strip with perforations at 25 mm intervals for attaching DIN support rails or for fixing cable conduits and lines, standardized locking system with sash made entirely of metal, with sheet steel mounting plate, scope of delivery: lock, 3mm double bit, useful additional equipment e.g. rotary comfort handle PHZ-A-ADD-ON with cylinder lock PHZ-E10/30-GS.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 800 mm |
| Width: | 800 mm |
| Depth: | 300 mm |
| Color: | grey |
| Protection class (IP): | IP66 |
| RAL number: | 7035 |
| With Mounting plate: | yes |
| Material: | steel |
| Number of locks: | 2 |
| Number of doors: | 1 |
| EMC version: | no |
| With viewing door: | no |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | yes |
| Impact resistance: | IK09 |
| Sloped roof: | no |
| Wall installation: | yes |
| Material quality: | other |
| Protection class (NEMA): | 12 |
Features
HAB
CS-88/300
Manufacturer
HAN
111710
GTIN
4015081112692
Surface finish
Powder coated
Width
800 mm
EMC version
No
Color
Suitable for outdoor installation
No
Height
800 mm
With mounting plate
Yes
RAL number
7035
Impact resistance
IK09
IP protection)
IP66
Protection class (NEMA)
12
Depth
300 mm
Material
Steel
Material quality
Other
