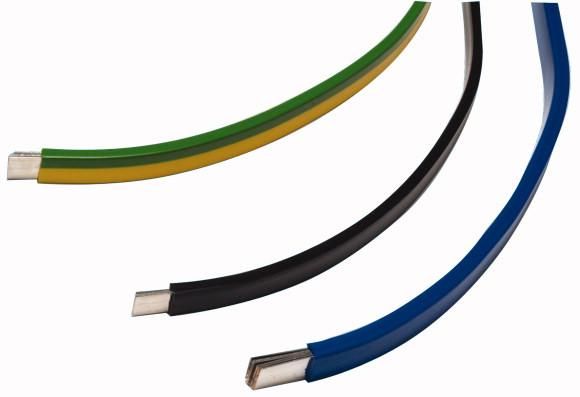

Insulated copper tape, laminated conductor E-Cu, tinned, UL-approved up to max. 600VAC, insulating material heat-resistant up to +105 °C, dimensions (number of layers x width x thickness) = 6x9x0.8mm, color blue, rated operating current Ie = 160 A, self-extinguishing according to UL 94 V0, dielectric strength according to IEC 60243-1 20 kV/mm, rated voltage Ue = 690VAC,
| Property | Value |
| Rated operating current: | 160 A |
| Number of slats: | 6 |
| Width: | 12 mm |
| Slat thickness: | 0.8 mm |
| Length: | 2000 mm |
| Thickness: | 8.8 mm |
| Lamellated: | yes |
Features
Rated operating current
160 A
HAB
CU-BAND6X9X0,8-BU 160A 6x9x0,8mm blue
Manufacturer
HAN
081344
GTIN
4015080813446
Width
12 mm
Length
2000 mm
Strength
8.8 mm
