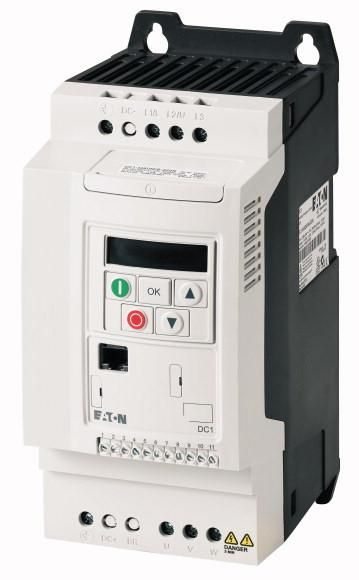

Frequency converter, type code: DC1, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-10%) - 480 (+10%) V, rated operating current at 150% overload: Ie = 9.5 A, note: rated operating current at a switching frequency of 16 kHz and an ambient temperature of +50 °C, note: overload cycle for 60 s every 600 s, assigned motor power note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, overload cycle for 60 s every 600 s, at 400 V, 50 Hz, assigned motor power 150% overload: P = 4 kW, 150% overload: IM = 8.5 A, assigned motor power note: at 440 - 480 V, 60 Hz, assigned motor power 150% overload: P = 5 HP, assigned motor power 150% overload: IM = 7.6 A, protection class: IP20/NEMA 0, interface/fieldbus (built-in): OP-Bus (RS485) /Modbus RTU, CANopen®, fieldbus connection (optional): SmartWire-DT, equipment: radio interference filter, brake chopper, 7-segment display, size: FS2, standards and regulations: general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
| Property | Value |
| Protection class (IP): | IP20 |
| Mains frequency: | 50/60 Hz |
| Mains voltage: | 380 to 480 V |
| Number of HW interfaces serial RS-485: | 1 |
| Max. Output frequency: | 500 Hz |
| Use in industrial areas permitted: | yes |
| Height: | 231 mm |
| Width: | 107 mm |
| Depth: | 152 mm |
| Type of converter: | U-converter |
| Max. output power with linear load at rated output voltage: | 4 kW |
| Supports protocol for data highway: | no |
| 4-quadrant operation possible: | yes |
| With optical interface: | no |
| Supports protocol for LON: | no |
| Relative symmetrical mains voltage tolerance: | 10 % |
| Supports protocol for AS-Interface Safety at Work: | no |
| Integrated brake chopper: | yes |
| Number of input phases: | 3 |
| Supports protocol for TCP/IP: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for PROFINET IO: | no |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for EtherNet/IP: | yes |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for SUCONET: | no |
| Supports protocol for CAN: | yes |
| Supports protocol for KNX: | no |
| Use in residential and commercial areas permitted: | yes |
| Supports protocol for INTERBUS: | no |
| Supports protocol for other bus systems: | yes |
| Supports protocol for ASI: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for MODBUS: | yes |
| With control element: | yes |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet Safety: | no |
| Relative symmetrical mains frequency tolerance: | 10 % |
| Supports protocol for SERCOS: | no |
| Number of output phases: | 3 |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Max. output power at square load at rated output voltage: | 4 kW |
| With PC connection: | yes |
| Nominal output current I2N: | 9.5 A |
| Max. Output voltage: | 500 V |
| Number of analog outputs: | 1 |
| Number of analog inputs: | 2 |
| Number of digital outputs: | 1 |
| Number of digital inputs: | 4 |
| Supports protocol for BACnet: | no |
| Protection class (NEMA): | other |
