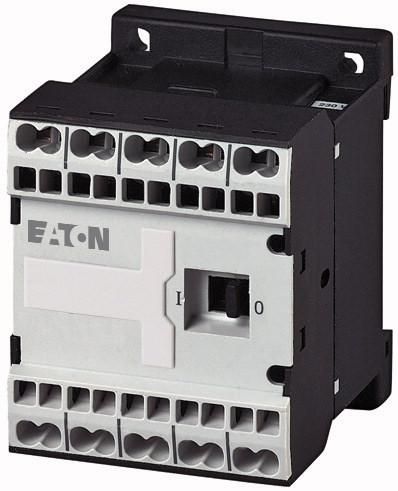

Auxiliary contactor, Product range: DILER miniature contactors, Application: Auxiliary contactor, Description: with positively guided contacts, Connection technology: Spring-loaded terminals, Rated operating current conventional thermal current 1-pole open at 50 °C: Ith = Ie= 10 A, Rated operating current AC-15 220 V 230 V 240 V: Ie= 6 A, 380 V 400 V 415 V: Ie= 3 A, Contact configuration S = normally open: 4 S, Identification number/design of the combinations Identification number: 40E, Usable for: .DILE-C, Actuating voltage: 230 V 50 Hz, 240 V 60 Hz, Current type AC/DC: Alternating current operation, Protection class: IP20, Notes: Switching elements in accordance with EN 50011., Connection designation of the coil in accordance with EN 50005., Standards and regulations: IEC/EN 60947, EN 60947-5-1,0660, UL, CSA
| Property | Value |
| Number of auxiliary contacts as normally open: | 4 |
| Rated operating current Ie, 400 V: | 3 A |
| Rated control supply voltage Us at AC 50 Hz: | 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 240 V |
| Mounting type: | DIN rail/screw |
| Interface: | no |
| Voltage type for actuation: | AC |
| With LED display: | no |
| Auxiliary circuit connection type: | Spring-loaded connection |
