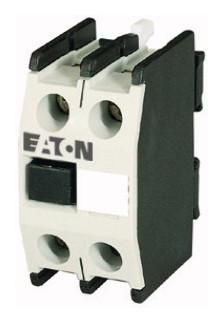

Auxiliary switch module, with positively guided contacts, function: for standard applications, 2-pole, connection technology: screw terminals, rated operating current AC-15 220 V 230 V 240 V: Ie= 6 A, rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, contact configuration N/C = normally closed: 2 N/C, mounting type: front mounting, can be used for: DILM40., DILM50., DILM65., DILM72., DILM80., DILM95., DILM115., DILM150., DILM170., DILMP63., DILMP80., DILMP125., DILMP160., DILMP200., DILMF40., DILMF50., DILMF65., DILMF80., DILMF95., DILMF115., DILMF150., Design: Surface-mounted auxiliary switch, Notes: Forced-guided contacts, according to IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules, auxiliary break contact can be used as a mirror contact according to IEC/EN 60947-4-1 Appendix F (not late break contact)
| Property | Value |
| Number of contacts as normally closed: | 2 |
| Mounting type: | Front mounting |
| Type of electrical connection: | Screw connection |
| Design: | plug-in |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Socket: | without |
