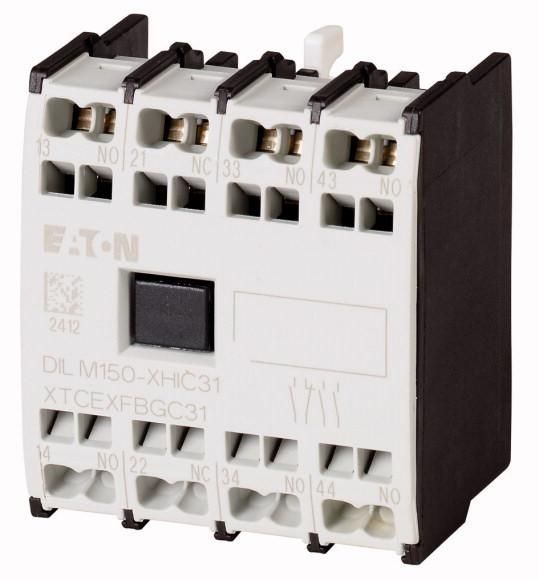

Auxiliary switch module, with positively guided contacts, Function: for standard applications, 4-pole, Connection technology: Spring-loaded terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 6 A, Rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 3 N/C, Mounting type: Front mounting, Can be used for: DILMC40., DILMC50., DILMC65., DILMC80., DILMC95., DILMC115., DILMC150., Design: Surface-mounted auxiliary switch, Notes: Positively guided contacts, in accordance with IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules, Auxiliary break contact can be used as a mirror contact in accordance with IEC/EN 60947-4-1 Annex F (non-late opener)
| Property | Value |
| Number of contacts as normally open: | 1 |
| Number of contacts as normally closed: | 3 |
| Mounting type: | Front mounting |
| Type of electrical connection: | Spring-loaded connection |
| Design: | plug-in |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Socket: | without |
Features
HAB
DILM150-XHIC13 HS module 4-pin
Manufacturer
HAN
278047
GTIN
4015082780470
Number of contacts as normally open
1
Number of contacts as opener
3
Version
Attachable
Design of the electrical connection
Spring-loaded connection
Rated operating current Ie at AC-15, 230 V
6A
Version
Without
Mounting type
Front mounting
