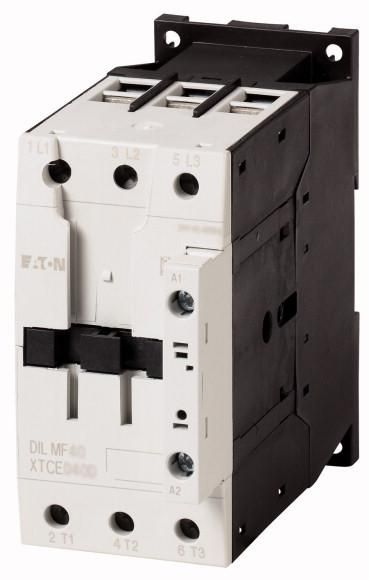

Power contactor, Application: Power contactor for the semiconductor industry according to SEMI F47, Power contactors up to 150 A with electronic drive, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Rated operating current AC-3 380 V 400 V: Ie= 65 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 98 A, encapsulated: Ith= 72 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 200 A, encapsulated: Ith= 180 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 20 kW, 380 V 400 V: P= 30 kW, 660 V 690 V: P= 35 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 7 kW, 380 V 400 V: P= 12 kW, 660 V 690 V: P= 17 kW, Notes: Switching elements according to EN 50012., Integrated protective circuit.
| Property | Value |
| Number of normally open contacts as main contacts: | 3 |
| Rated operating power at AC-3, 400 V: | 30 kW |
| Rated operating power at AC-4, 400 V: | 12 kW |
| Rated operating current Ie at AC-1, 400 V: | 85 A |
| Rated operating current Ie at AC-3, 400 V: | 65 A |
| Rated operating current Ie at AC-4, 400 V: | 25 A |
| Voltage type for Actuation: | AC |
| Rated control supply voltage Us at AC 50 Hz: | 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 V |
| Main circuit connection type: | Screw connection |
| Suitable for series installation: | no |
| Rated operating power NEMA: | 37 kW |
