Reversing contactor combination, Application: Contactor combinations for motor starting with two directions of rotation, Accessories: DIUL reversing combinations, Utilization category: AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, inching, Rated operating current AC-3 380 V 400 V: Ie= 65 A, Max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 20 kW, 380 V 400 V: P= 30 kW, 660 V 690 V: P= 35 kW, Actuating voltage: 110 V 50 Hz, 120 V 60 Hz, Current type AC/DC: Alternating current operation, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging. marked.
| Property | Value |
| Connection type main circuit: | Screw connection |
| Voltage type for actuation: | AC |
| Function: | Reversing contactor |
| Rated operating power at AC-3, 400 V: | 30 kW |
| Rated control supply voltage Us at AC 50 Hz: | 110 V |
| Rated control supply voltage Us at AC 60 Hz: | 120 V |
| Degree of protection (IP): | IP00 |
| Rated operating current Ie at AC-3, 400 V: | 65 A |
| NEMA rated operating power: | 37 kW |
Features
HAB

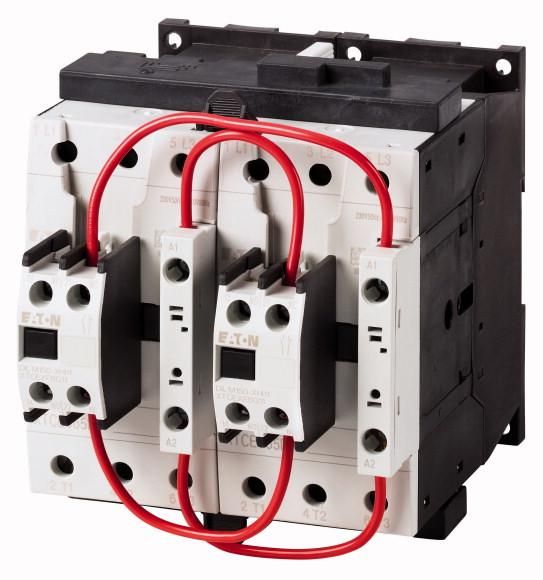

DIULM65/11 (110V50HZ, 120V60HZ) 30kW AC
Manufacturer
HAN
278258
GTIN
4015082782580
Connection type main circuit
Screw connection
Rated operating power NEMA
37kW
Rated operational power at AC-3, 400 V
30kW
Rated operational current Ie at AC-3, 400 V
65A
Rated control supply voltage Us at AC 50 Hz
110V
Rated control supply voltage Us at AC 60 Hz
120V
Function
Reversing contactor
IP protection)
IP00
Voltage type for actuation
AC
