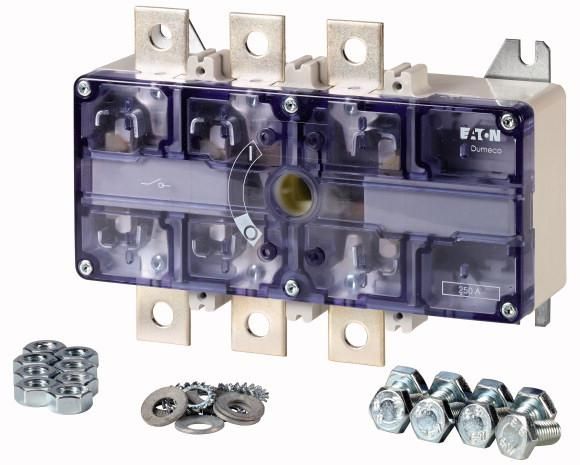

Load disconnector, Product range: Load disconnector, main switch, maintenance switch, Type code: DMV, STOP function: optional, without rotary handle and drive shaft, Notes: visible contacts, Information on scope of delivery: Auxiliary switch contact can be retrofitted., including connection accessories, 3-pole, Protection class: IP00, IP20 with terminal cover, Design: Surface mounting, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 147 kW, Rated continuous current: Iu = 250 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3
| Property | Value |
| Number of poles: | 3 |
| Rated operational power at AC-23, 400 V: | 140 kW |
| Rated continuous current Iu: | 250 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Design as EMERGENCY STOP device: | yes |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | screw connection |
| Device design: | Complete device in housing |
| Design of the actuating element: | other |
| Suitable for floor mounting: | yes |
| Conditional rated short-circuit current Iq: | 100 kA |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 12 kA |
| Color of the actuating element: | other |
| Rated operating voltage: | 690 V |
| Switching capacity at 400 V: | 140 kW |
| Rated continuous current at AC-21, 400 V: | 250 A |
| Number of switches: | 1 |
| Rated continuous current at AC-23, 400 V: | 250 A |
| Protection class (NEMA): | other |
Features
HAB
DMV250N/3 DUMECO DMV 250N/3
Manufacturer
HAN
1814408
GTIN
8711426853812
Connection type main circuit
Screw connection
Number of switches
1
Designed as main switch
No
Designed as an EMERGENCY STOP device
Yes
Designed as a safety switch
No
Designed as a maintenance/repair switch
No
Version as reversing switch
No
Design of the actuating element
Other
Conditional rated short-circuit current Iq
100kA
Rated operational power at AC-23, 400 V
140kW
Rated operating voltage
690V
Rated continuous current Iu
250A
Rated continuous current at AC-21, 400 V
250A
Rated continuous current at AC-23, 400 V
250A
Rated short-time withstand current Icw
12kA
Color of the actuator
Other
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Complete device in housing
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Switching capacity at 400 V
140kW
Protection class (IP), front
IP20
Protection class (NEMA)
Other
Voltage release optional
No
Lockable
No
