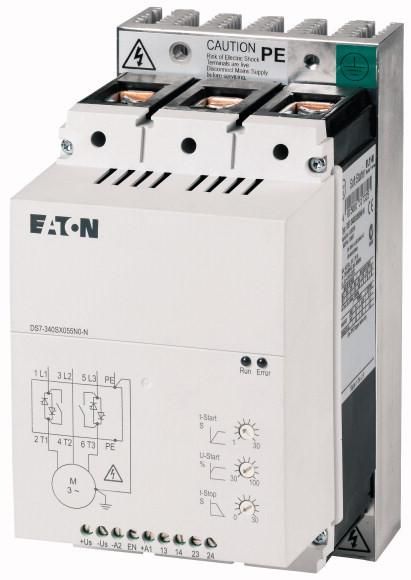

Soft starter, description: with internal bypass contacts, function: soft starter for three-phase loads, mains connection voltage (50/60 Hz): ULN= 200 - 480 V AC, supply voltage: Us= 24 V AC/DC, control voltage: UC= 24 V AC, 24 V DC, assigned motor power (standard connection, in-line) at 400 V, 50 Hz: P= 30 kW, at 460 V, 60 Hz: P= 40 HP, rated operating current AC-53: Ie= 55 A, rated operating voltage: Ue= 200 V, 230 V, 400 V, 480 V, connection to SmartWire-DT: no, size: FS3, standards and regulations: IEC/EN 60947-4-2, UL 508, CSA22.2-14
| Property | Value |
| Integrated overload protection of the motor: | no |
| Rated power three-phase motor, standard circuit, at 230 V: | 15 kW |
| Rated ambient temperature without derating: | 40 °C |
| Rated power three-phase motor, standard circuit, at 400 V: | 30 kW |
| Rated operating current Ie at 40 °C Tu: | 55 A |
| Type of voltage for actuation: | AC/DC |
| Rated operating voltage Ue: | 230 to 480 V |
| Rated control supply voltage Us at AC 50 Hz: | 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 V |
| Rated control supply voltage Us at DC: | 24 V |
| Torque control: | no |
| Internal bridging: | yes |
| With display: | no |
| Function: | one direction of rotation |
| Trip class: | other |
| Protection class (IP): | IP20 |
| Protection class (NEMA): | 1 |
Features
Rated operating voltage Ue
230 to 480 V
HAB
DS7-340SX055N0-N
Manufacturer
HAN
134917
GTIN
4015081317325
Trigger class
Other
Rated control supply voltage Us at AC 50 Hz
24V
Rated control supply voltage Us at AC 60 Hz
24V
Rated control supply voltage Us at DC
24V
Function
One direction of rotation
With display
No
IP protection)
IP20
Protection class (NEMA)
1
Voltage type for actuation
AC/DC
