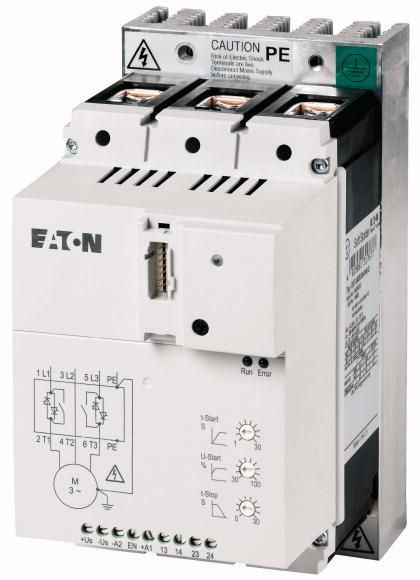

Soft starter, range: SmartWire-DT participants, description: with internal bypass contacts, function: soft starter for three-phase loads, mains connection voltage (50/60 Hz): ULN= 200 - 480 V AC, supply voltage: Us= 24 V DC, control voltage: UC= 24 V DC, assigned motor power (standard connection, in-line) at 400 V, 50 Hz: P= 55 kW, at 460 V, 60 Hz: P= 75 HP, rated operating current AC-53: Ie= 100 A, rated operating voltage: Ue= 200 V, 230 V, 400 V, 480 V, connection to SmartWire-DT: yes, size: FS3, standards and regulations: IEC/EN 60947-4-2, UL 508, CSA22.2-14
| Property | Value |
| Integrated overload protection of the motor: | no |
| Rated power three-phase motor, standard circuit, at 230 V: | 30 kW |
| Rated ambient temperature without derating: | 40 °C |
| Rated power three-phase motor, standard circuit, at 400 V: | 55 kW |
| Rated operating current Ie at 40 °C Tu: | 100 A |
| Type of voltage for actuation: | DC |
| Rated operating voltage Ue: | 230 to 480 V |
| Rated control supply voltage Us at DC: | 24 V |
| Torque control: | no |
| Internal bridging: | yes |
| With display: | no |
| Function: | one direction of rotation |
| Trip class: | other |
| Protection class (IP): | IP20 |
| Protection class (NEMA): | 1 |
Features
Rated operating voltage Ue
230 to 480 V
HAB
DS7-34DSX100N0-D
Manufacturer
HAN
134956
GTIN
4015081317714
Trigger class
Other
Rated control supply voltage Us at DC
24V
Function
One direction of rotation
With display
No
IP protection)
IP20
Protection class (NEMA)
1
Voltage type for actuation
DC
