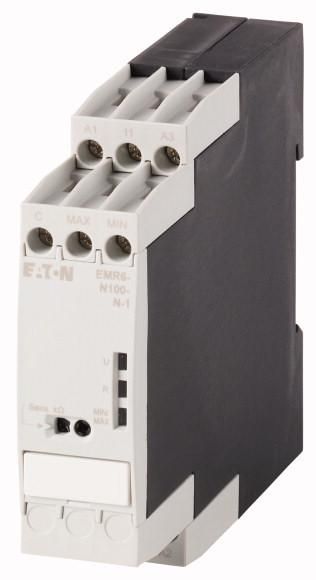

Level relay, product range: measuring and monitoring relays EMR, monitoring of: level of conductive liquids, mixing ratio of conductive liquids, adjustable response value: 5 - 100 k, supply voltage: 110 - 130 V AC, 50/60 Hz, 220 - 240 V AC, 50/60 Hz, installation position: any, fastening: snap-on mounting rail IEC/EN 60715, width: 22.5 mm, standards and regulations: IEC/EN 60255-6, EN 61557, UL, CSA, GL, DNV, RMRS, EAC, RCM
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Design of the electrical connection: | screw connection |
| Physical measuring principle: | conductive |
| Type of voltage for actuation: | AC |
| Width: | 22.5 mm |
| Height: | 85.6 mm |
| Depth: | 103.7 mm |
| With removable terminals: | no |
| Number of electrode inputs: | 3 |
| Response sensitivity adjustable: | yes |
| Rated control supply voltage Us at AC 50 Hz: | 110 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 110 to 240 V |
| Cascadable: | no |
Features
HAB
EMR6-N100-N-1 110-130V AC 50/60Hz
Manufacturer
HAN
184758
GTIN
4015081787944
Response sensitivity adjustable
Yes
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
110 to 240 V
Rated control supply voltage Us at AC 60 Hz
110 to 240 V
Width
22.5 mm
Height
85.6 mm
With removable clamps
No
Voltage type for actuation
AC
Depth
103.7 mm
