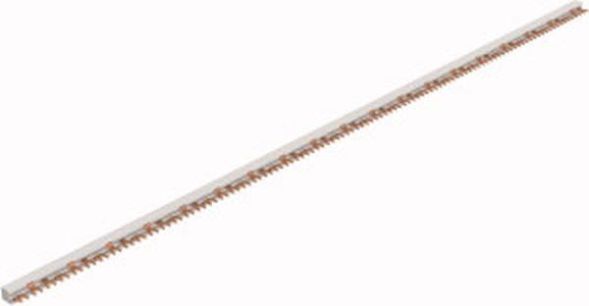

Busbar for circuit breakers, residual current circuit breakers, combined residual current protective devices, can be cut to length individually, color RAL 7035, halogen-free (DIN EN 60754-1), fire behavior class according to V2, tested by (DIN EN 61439-1:2021-10 DIN EN 61439-6:2013-06) PC-ABS insulation material and PP contact protection material, dielectric strength 36 kV/mm and overvoltage category III
| Property | Value |
| Number of poles: | 4 |
| Number of phases: | 3 |
| Length: | 1016 mm |
| Cross-section: | 16 mm² |
| Rated continuous current Iu: | 80 A |
| Max. Rated operating voltage Ue: | 415 V |
| Insulated: | yes |
| Suitable for number of devices: | 14 |
| Suitable for devices with N conductor: | yes |
| Pitch: | 17.8 mm |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 25 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
Yes
Suitable for number of devices
14
Pitch dimension
17.8 mm
Rated surge voltage
4 kV
HAB
GVK-16/3P+N-4TE
Manufacturer
HAN
EP-501074
GTIN
9010653035183
Number of phases
3
Design of the electrical connection
Fork
Conditional rated short-circuit current Iq
25kA
Rated continuous current Iu
80A
Isolated
Yes
Length
1016 mm
Max. rated operating voltage Ue
415V
Number of poles
4
Cross-section
16 mm²
