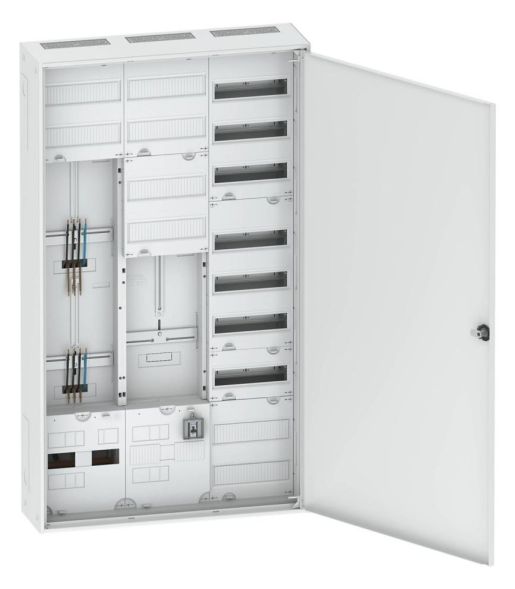

Complete meter cabinet for 3-point fastening, heat pump ready, H 1400mm x W 800mm x D 225mm, surface-mounted distributor with door, protection class II (protective insulation), plastic covers, protection type IP31, Norm0603-1, Ue 400V AC / In 63A, housing made of sheet steel powder-coated white RAL9016, door hinge selectable right or left, cable entry at the top with membrane flange, at the bottom with cable entry flange, at the side via pre-punched openings in the sheet metal. Meter location: pre-wired, 5-pole, direct connection. NAR meter: 5-pole busbar, for accommodating LSHU switch (SLS) and SPZT123-S surge protection (SPD). NAR TSG: with 1-pole C10/25kA circuit breaker, sealable and 7-pole control line terminal (screwless) and feed-in terminals AKU16/5. AAR meter: with main line branch terminal. Number of meter slots for single tariff: 2 Number of TSG slots: 1 Number of distribution rows: 7 with APZ room including 6kV RJ45 patch cable. Please order accessories such as RJ45 couplings, etc. separately.
