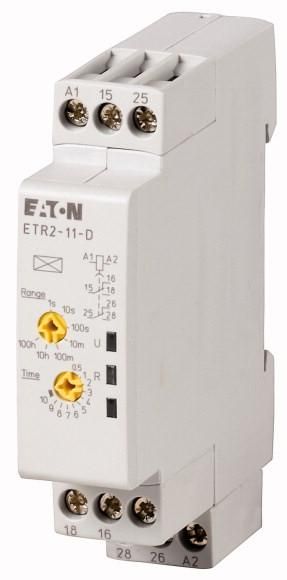

Electronic time relay ETR2 according to IEC/EN 61812-1, 17.5 mm wide, time range 0.05s-100h, 2 changeover contacts with off-delay, with 45 mm cap size suitable for installation in installation distributors
| Property | Value |
| Number of outputs, delayed, changeover: | 2 |
| Design of the electrical connection: | Screw connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Type of voltage for actuation: | AC/DC |
| Time range: | 0.05 to 100 s |
| Rated control supply voltage Us at AC 50 Hz: | 24 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 to 240 V |
| Rated control supply voltage Us at DC: | 24 to 240 V |
| Width: | 17.5 mm |
| Depth: | 63 mm |
| Height: | 80 mm |
| With plug-in base: | no |
| Remote control possible: | no |
| Suitable as remote control: | no |
| On-delay function: | no |
| Off-delay function: | yes |
| Function with flickering when switched on: | no |
| Function with flickering when switched off: | no |
| Function with star/delta: | no |
| Function with pulse forming: | no |
| Function with flashing starting with pause, fixed time: | no |
| Function with flashing starting with pulse, fixed time: | no |
| Function with clocking starting with pause, variable: | no |
| Function with clocking starting with pulse, variable: | no |
| With semiconductor output: | no |
| Nominal current: | 3 A |
| Suitable for DIN rail mounting: | yes |
| Suitable for front mounting: | no |
Features
HAB
ETR2-12-D OFF-delay 2W
Manufacturer
HAN
119427
GTIN
4015081175734
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
24 to 240 V
Rated control supply voltage Us at AC 60 Hz
24 to 240 V
Rated control supply voltage Us at DC
24 to 240 V
Width
17.5 mm
Remote control possible
No
Suitable for DIN rail mounting
Yes
Height
80 mm
Rated current
3 A
Voltage type for actuation
AC/DC
Depth
63 mm
