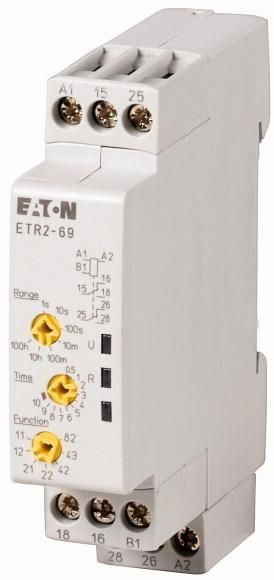

Eaton ETR2-69 time relay, 262689

Description

Features

Reviews

Multifunction time relay electronic ETR2, 17.5mm wide, time range 0.05s-100h, 1 changeover contact adjustable, 11 delayed response, 21 flickering on, 42 flashing, pulse starting, 43 flashing, pause starting, 12 delayed release, 22 flickering off, 82 pulse forming

Property	Value
Number of outputs, delayed, changeover:	1
Design of the electrical connection:	screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	yes
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	17.5 mm
Depth:	63 mm
Height:	70 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	yes
Off-delay function:	yes
Function with flickering when switched on:	yes
Function with flickering when switched off:	yes
Function with star/delta:	no
Function with pulse forming:	yes
Function with flashing starting with pause, fixed time:	yes
Function with flashing starting with pulse, fixed time:	yes
Function with clocking starting with pause, variable:	no
Function with clocking starting with pulse, variable:	no
With semiconductor output:	no
Nominal current:	3 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
