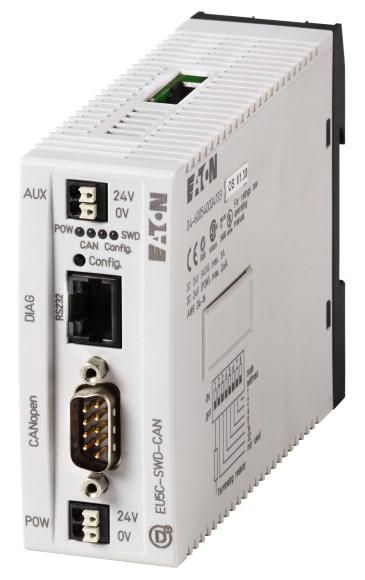

SmartWire-DT gateway for connecting up to 99 SWD participants to the field bus and for supplying the SWD participants and switching devices. The connection to CANopen® is made via the 9-pin SUB-D connector as a slave. Automatic baud rate detection from 10kBit/s to 1Mbit/s. The address range can be set from 1-32. The gateway has a separate serial diagnostic interface.
| Property | Value |
| Height: | 90 mm |
| Width: | 35 mm |
| Depth: | 127 mm |
| Type of supply voltage: | DC |
| Protection class (IP): | IP20 |
| Suitable for safety functions: | yes |
| Rack mounting possible: | no |
| IO-Link Master: | no |
| Supply voltage for DC: | 20.4 to 28.8 V |
| Wireless standard WLAN 802.11: | no |
| Wall/direct mounting possible: | yes |
| Front installation possible: | no |
| Performance level according to EN ISO 13849-1: | without |
| Wireless standard Bluetooth: | no |
| System component: | yes |
| With electrical isolation: | no |
| Field bus connection possible via separate bus coupler: | no |
| Mounting rail mounting possible: | yes |
| Related equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for SERCOS: | no |
| Supports protocol for CAN: | yes |
| Supports protocol for KNX: | no |
| Supports protocol for EtherNet/IP: | no |
| Supports protocol for MODBUS: | no |
| Supports protocol for other bus systems: | no |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Supports protocol for TCP/IP: | no |
| Supports protocol for Data-Highway: | no |
| Supports protocol for ASI: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for SUCONET: | no |
| Supports protocol for LON: | no |
| Supports protocol for DeviceNet Safety: | no |
| Wireless standard GPRS: | no |
| Wireless standard GSM: | no |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for INTERBUS: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for PROFINET IO: | no |
| SIL according to IEC 61508: | without |
| Radio standard UMTS: | no |
Features
Type of voltage of the supply voltage
DC
Supports protocol for KNX
No
HAB
EU5C-SWD-CAN
Manufacturer
HAN
116307
GTIN
4015081160471
Width
35 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Height
90 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
IP protection)
IP20
Depth
127 mm
Mounting rail possible
Yes
Supports protocol for AS-Interface Safety at Work
No
Supports protocol for ASI
No
Supports protocol for CAN
Yes
Supports data highway protocol
No
Supports protocol for DeviceNet
No
Supports protocol for DeviceNet Safety
No
Supports protocol for EtherNet/IP
No
Supports protocol for Foundation Fieldbus
No
Supports protocol for INTERBUS
No
Supports protocol for INTERBUS-Safety
No
Supports protocol for LON
No
Supports protocol for Modbus
No
Supports protocol for PROFIBUS
No
Supports protocol for PROFINET CBA
No
Supports protocol for PROFINET IO
No
Supports protocol for PROFIsafe
No
Supports protocol for SERCOS
No
Supports protocol for SUCONET
No
Supports protocol for SafetyBUS p
No
Supports protocol for TCP/IP
No
Supports protocol for other bus systems
No
