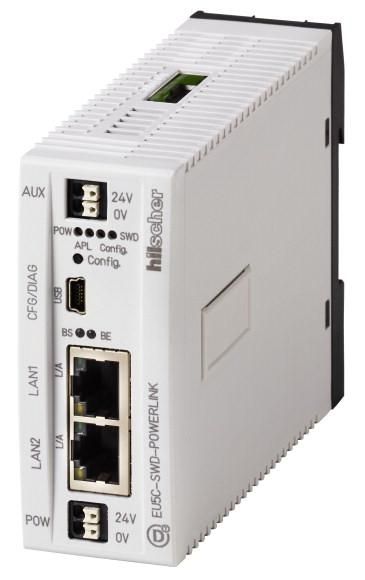

SWD gateway, 99 SWD participants on Powerlink
Eaton Type: EU5C-SWD-POWERLINK
Eaton Article No.: 171797
| Property | Value |
| Height: | 90 mm |
| Width: | 35 mm |
| Depth: | 127 mm |
| Type of supply voltage: | DC |
| Protection class (IP): | IP20 |
| Suitable for safety functions: | yes |
| Rack mounting possible: | no |
| IO-Link Master: | no |
| Supply voltage AC 60 Hz: | 0 V |
| Supply voltage DC: | 20.4 to 28.8 V |
| Wireless standard WLAN 802.11: | no |
| Supply voltage AC 50 Hz: | 0 V |
| Wall/direct mounting possible: | yes |
| Front installation possible: | no |
| Performance level according to EN ISO 13849-1: | without |
| Wireless standard Bluetooth: | no |
| System component: | yes |
| With potential separation: | no |
| Field bus connection via separate bus coupler possible: | no |
| Mounting rail mounting possible: | yes |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for SERCOS: | no |
| Supports protocol for CAN: | no |
| Supports protocol for KNX: | no |
| Supports protocol for EtherNet/IP: | no |
| Supports protocol for Modbus: | no |
| Supports protocol for other bus systems: | yes |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Supports protocol for TCP/IP: | no |
| Supports protocol for Data-Highway: | no |
| Supports protocol for ASI: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for SUCONET: | no |
| Supports protocol for LON: | no |
| Supports protocol for DeviceNet Safety: | no |
| Wireless standard GPRS: | no |
| Wireless standard GSM: | no |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for INTERBUS: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for PROFINET IO: | no |
| SIL according to IEC 61508: | without |
| Wireless standard UMTS: | no |
| Wireless standard eGPRS: | no |
| Wireless standard LTE: | no |
Features
Type of voltage of the supply voltage
DC
Supports protocol for KNX
No
HAB
EU5C-SWD-POWERLINK
Manufacturer
HAN
171797
GTIN
4015081683314
Width
35 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Height
90 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
IP protection)
IP20
Depth
127 mm
Mounting rail possible
Yes
Supports protocol for AS-Interface Safety at Work
No
Supports protocol for ASI
No
Supports protocol for CAN
No
Supports data highway protocol
No
Supports protocol for DeviceNet
No
Supports protocol for DeviceNet Safety
No
Supports protocol for EtherNet/IP
No
Supports protocol for Foundation Fieldbus
No
Supports protocol for INTERBUS
No
Supports protocol for INTERBUS-Safety
No
Supports protocol for LON
No
Supports protocol for Modbus
No
Supports protocol for PROFIBUS
No
Supports protocol for PROFINET CBA
No
Supports protocol for PROFINET IO
No
Supports protocol for PROFIsafe
No
Supports protocol for SERCOS
No
Supports protocol for SUCONET
No
Supports protocol for SafetyBUS p
No
Supports protocol for TCP/IP
No
Supports protocol for other bus systems
Yes
