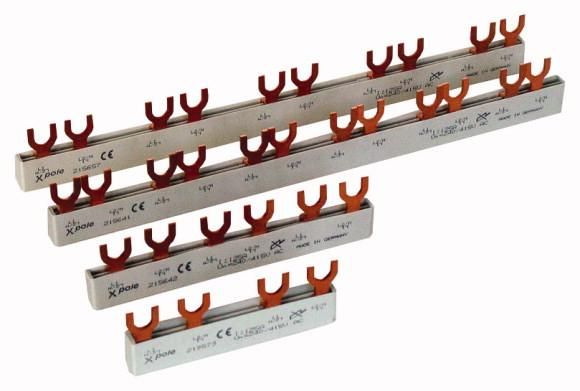

Phase rail, 2Ph, 16qmm, fork, 4.5TE
Eaton Type: EVG-16/2PHAS/4MODUL/HI
Eaton Article No.: 291482
| Property | Value |
| Number of poles: | 2 |
| Number of phases: | 2 |
| Length: | 33 mm |
| Cross-section: | 16 mm² |
| Rated continuous current Iu: | 80 A |
| Max. Rated operating voltage Ue: | 415 V |
| Insulated: | yes |
| Suitable for number of devices: | 2 |
| Suitable for devices with N conductor: | no |
| Suitable for devices with auxiliary switch: | yes |
| Conditional rated short-circuit current Iq: | 25 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N conductor
No
Suitable for number of devices
2
Rated surge voltage
4 kV
HAB
EVG-16/2PHAS/4MODULE/HI
Minimal order
20 pieces
Manufacturer
HAN
291482
GTIN
4015082914820
Number of phases
2
Design of the electrical connection
Fork
Conditional rated short-circuit current Iq
25kA
Rated continuous current Iu
80A
Isolated
Yes
Length
33 mm
Max. rated operating voltage Ue
415V
Number of poles
2
Cross-section
16 mm²
