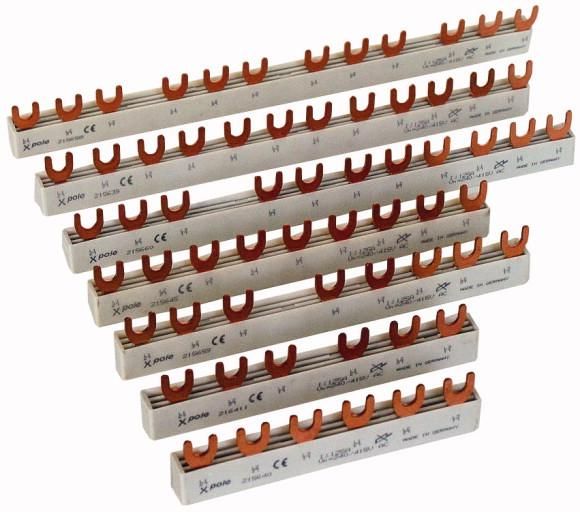

Phase rail, 4Ph, 10qmm, fork, 16TE
Eaton Type: EVG-3P+3N/16MODUL
Eaton Article No.: 105215
| Property | Value |
| Number of poles: | 4 |
| Number of phases: | 4 |
| Length: | 28 mm |
| Cross-section: | 10 mm² |
| Rated continuous current Iu: | 63 A |
| Max. Rated operating voltage Ue: | 415 V |
| Insulated: | yes |
| Suitable for number of devices: | 8 |
| Suitable for devices with N conductor: | yes |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 25 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
Yes
Suitable for number of devices
8
Rated surge voltage
4 kV
HAB
EVG-3P+3N/16MODULE
Manufacturer
HAN
105215
GTIN
4015081050123
Number of phases
4
Design of the electrical connection
Fork
Conditional rated short-circuit current Iq
25kA
Rated continuous current Iu
63 A
Isolated
Yes
Length
28 mm
Max. rated operating voltage Ue
415V
Number of poles
4
Cross-section
10 mm²
