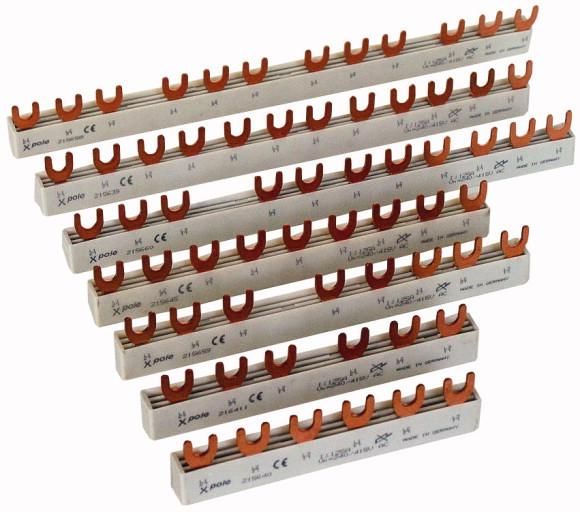

Phase rail, 3Ph, 10qmm, fork, 9TE
Eaton Type: EVG-3PHAS/9MODUL
Eaton Article No.: 215645
| Property | Value |
| Number of poles: | 3 |
| Number of phases: | 3 |
| Length: | 140 mm |
| Cross-section: | 10 mm² |
| Rated continuous current Iu: | 63 A |
| Max. Rated operating voltage Ue: | 500 V |
| Insulated: | yes |
| Suitable for number of devices: | 3 |
| Suitable for devices with N conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 25 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
3
Rated surge voltage
4 kV
HAB
EVG-3PHAS/9MODULE
Manufacturer
HAN
215645
GTIN
9010238140318
Number of phases
3
Design of the electrical connection
Fork
Conditional rated short-circuit current Iq
25kA
Rated continuous current Iu
63 A
Isolated
Yes
Length
140 mm
Max. rated operating voltage Ue
500V
Number of poles
3
Cross-section
10 mm²
