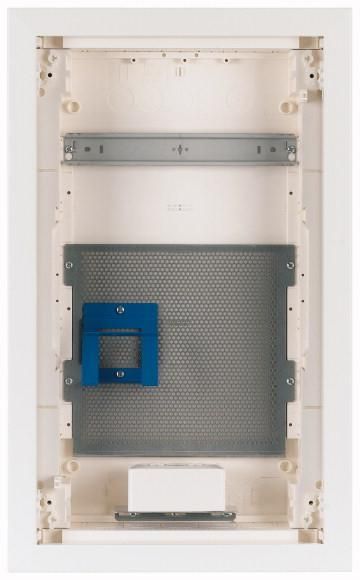

Second generation flush-mounted multimedia distributor KLV, plastic distributor with sheet steel door with ventilation openings, marking slots in the wall box, unique super-flat door frame design, stable door lock optionally replaceable with safety lock, cable holder for tidy cable routing, optionally available in project delivery form, optional door with frame in desired RAL color, extensive range of accessories, scope of delivery: housing, 1x mounting rail, micro-perforated mounting plate, 1x device holder, 2x single sockets with plug-in technology and Euro2 adapter, spirit level for alignment, 3D plaster compensation with up to 18mm depth compensation, cable holder, nail tabs, assembly instructions, practical special packaging. Standards: Approved for multimedia applications in GP universal housing in accordance with IEC/EN 60670-24. Protection class I
| Property | Value |
| LSA: | no |
| Design: | Distribution box |
| Mounting type: | Flush-mounted |
| Mounting dimension (standardized): | other |
| Max. Number of double wires (DA): | 12 |
| Color: | white |
| Height: | 590 mm |
| Width: | 360 mm |
| Depth: | 100 mm |
| With connection strips: | no |
| 110-compatible: | yes |
| Material: | Sheet steel/plastic |
| Protection class (IP): | IP30 |
| SID: | no |
| Protection class (NEMA): | other |
| Number of installable terminal blocks: | 12 |
