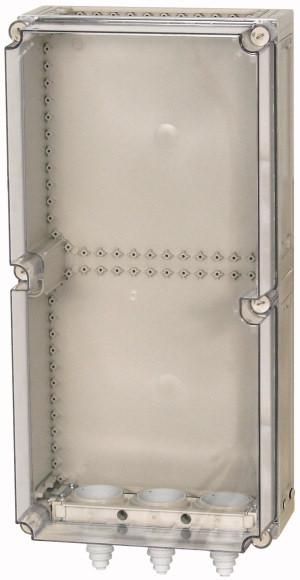

Empty distribution housing with attached cable glands, material polycarbonate, impact-resistant, protection class IP65, patented cover lock with integrated overpressure compensation, side walls closed, can be knocked out, walls open at the top or bottom, cables can be inserted from the front using split cable clamps, sealable cover locks, RAL 7035, grey (base box), transparent smoke grey (cover), installation depth with mounting plate = 200mm, cover design: transparent smoke grey, lower part design: open at the top, cable gland at the bottom
| Property | Value |
| Height: | 750 mm |
| Width: | 375 mm |
| Depth: | 225 mm |
| Installation depth: | 200 mm |
| Inner depth: | 200 mm |
| Protection type (IP): | IP65 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | yes |
| Surface: | other |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of modules: | 1 |
| Number of openings for flange plates: | 6 |
| Type of cover: | lid |
| Type of door: | without |
| Cover design: | closed |
| Width in modular units: | 17 |
| Functional integrity: | other |
| Material thickness of housing: | 6 mm |
| Material thickness of door/cover: | 6 mm |
| With lock: | no |
| Rated current (In): | 1600 A |
| Transparent cover/door: | yes |
| Color: | gray |
| Protection class (NEMA): | other |
Features
HAB
KST48-200
Manufacturer
HAN
098250
GTIN
4015080982500
Cultivation option
Yes
Number of modules
1
Number of openings for flange plates
6
Type of cover
Lid
Type of door
Without
Cover design
Closed
Width
375 mm
Width in pitch units
17
Installation depth
200 mm
Color
Functional preservation
Other
Suitable for outdoor use
Yes
Suitable for lightning protection
Yes
Height
750 mm
Internal depth
200 mm
Housing material thickness
6 mm
Material thickness door/lid
6 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
Nominal current (In)
1600A
Surface
Other
RAL number
7035
Impact resistance
IK10
IP protection)
IP65
Protection class (NEMA)
Other
Protection class
II
Depth
225 mm
Transparent lid/door
Yes
Housing material
Plastic
