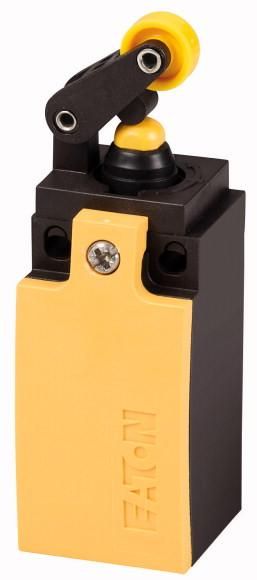

Position switch, basic function: position switch, safety position switch, type code: LS (M) -., range: roller lever, protection class: IP66, IP67, features: complete device, ambient temperature: -25 - +70 C, description: long, contact configuration Oe = normally closed: 2 Oe, note: = safety function, by positive opening according to IEC/EN 60947-5-1, positive opening (ZW): yes, color of housing cover: yellow, housing: plastic, connection type: screw terminal, standards and regulations: IEC/EN 60947
| Property | Value |
| Number of contacts as normally closed: | 2 |
| Length of sensor: | 33.5 mm |
| Width of sensor: | 31 mm |
| Height of sensor: | 61 mm |
| Switching function: | Slow action contact |
| Protection class (IP): | IP66/IP67 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | yes |
| With status display: | no |
| Design of the interface: | without |
| Design of the actuating element: | roller lever |
| Design of the electrical connection: | cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25 to 70 °C |
| Number of safety-related auxiliary contacts: | 2 |
| Positive opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.3 A |
| Rated operating current Ie at DC-13, 125 V: | 0.8 A |
| Rated operating current Ie at DC-13, 24 V: | 3 A |
| Rated operating current Ie at AC-15, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 125 V: | 6 A |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
| Protection class (NEMA): | other |
Features
Rated operating current Ie at DC-13, 230 V
0.3 A
Rated operating current Ie at DC-13, 125 V
0.8 A
Rated operating current Ie at AC-15, 24 V
6 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
6 A
HAB
LS-S02/L
Minimal order
2 pieces
Manufacturer
HAN
106781
GTIN
4015081064984
Number of contacts as opener
2
Number of safety-related auxiliary contacts
2
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Roller lever
Design of the electrical connection
Cable entry (metric)
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
6A
Rated operating current Ie at DC-13, 24 V
3 A
Housing coating
Other
Width of the sensor
31 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Housing design
Cuboid
Height of the sensor
61 mm
Length of the sensor
33.5 mm
With status display
No
Switching function
Slow-action switching element
Switching function latching
No
IP protection)
IP66/IP67
Protection class (NEMA)
Other
Ambient temperature during operation
-25 to 70 °C
Housing material
Plastic
Forced opening
Yes
