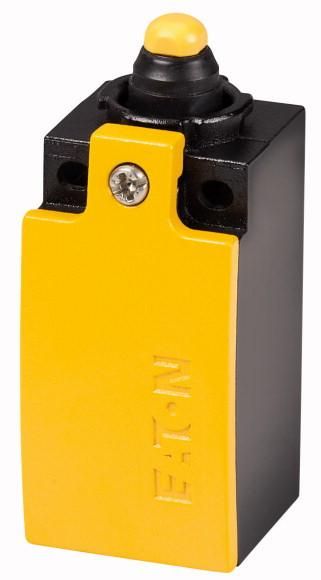

Safety position switch, basic function: position switch, type code: LS (M) -., product range: round plunger, protection class: IP66, IP67, features: basic device, expandable, ambient temperature: -25 - +70 °C, contact configuration S = normally open: 2 S, housing cover colour: yellow, housing: metal, connection type: cage clamp, Cage clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden., accessories for the cage clamp connection from Wago: insertion bridge, grey, Wago order no. 264-402, standards and regulations: IEC/EN 60947
| Property | Value |
| Number of contacts as normally open: | 2 |
| Length of sensor: | 33.5 mm |
| Width of sensor: | 31 mm |
| Height of sensor: | 61 mm |
| Switching function: | Slow action switching element |
| Protection class (IP): | IP66/IP67 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Design of the interface: | without |
| Design of the actuating element: | domed plunger |
| Design of the electrical connection: | cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25 to 70 °C |
| Forced opening: | no |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | metal |
| Rated operating current Ie at DC-13, 230 V: | 0.3 A |
| Rated operating current Ie at DC-13, 125 V: | 0.8 A |
| Rated operating current Ie at DC-13, 24 V: | 3 A |
| Rated operating current Ie at AC-15, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 125 V: | 6 A |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Alignment of the actuating element: | roller plunger straight |
| Switching function latching: | no |
| Protection class (NEMA): | other |
Features
Rated operating current Ie at DC-13, 230 V
0.3 A
Rated operating current Ie at DC-13, 125 V
0.8 A
Rated operating current Ie at AC-15, 24 V
6 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
6 A
HAB
LSM-20
Minimal order
2 pieces
Manufacturer
HAN
266155
GTIN
4015082661557
Number of contacts as normally open
2
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Tappet
Design of the electrical connection
Cable entry (metric)
Alignment of the actuator
Roller tappet straight
Rated operating current Ie at AC-15, 230 V
6A
Rated operating current Ie at DC-13, 24 V
3 A
Housing coating
Other
Width of the sensor
31 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
61 mm
Length of the sensor
33.5 mm
With status display
No
Switching function
Slow-action switching element
Switching function latching
No
IP protection)
IP66/IP67
Protection class (NEMA)
Other
Ambient temperature during operation
-25 to 70 °C
Housing material
Metal
Forced opening
No
