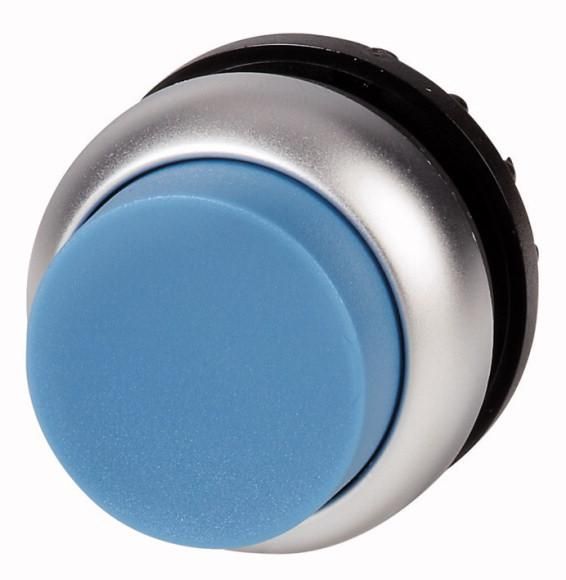

Push button, range: RMQ-Titan, single device, design: high, latching, button plate: blue, button plate unlabeled, protection class: IP66, IP67, IP69K, front ring titanium, connection to SmartWire-DT: yes, with RMQ-SWD connections, front dimensions: 22 x 22, notes: latching/push-button function can be changed on the device, standards and regulations: IEC/EN 60947,0660
| Property | Value |
| Button design: | high |
| Button color: | blue |
| Lens design: | round |
| Momentary: | no |
| Switching function latching: | yes |
| Hole diameter: | 22.5 mm |
| Suitable for lighting: | no |
| Protection class (IP), front: | IP67/IP69K |
| Number of command points: | 1 |
| With Front ring: | yes |
| Front ring material: | plastic |
| Front ring color: | chrome |
| Labeled: | no |
| With protective cover: | no |
| NEMA protection class, front: | 4X |
Features
HAB
M22-DRH-B
Minimal order
5 pieces
Manufacturer
HAN
216673
GTIN
4015082166731
Number of command posts
1
Lens design
Around
Button design
High
Labeled
No
Color front ring
Chrome
Button color
Blue
Suitable for lighting
No
Hole diameter
22.5 mm
With front ring
Yes
With protective cover
No
NEMA protection class, front
4X
Switching function latching
Yes
Protection class (IP), front
IP67/IP69K
Groping
No
Front ring material
Plastic
