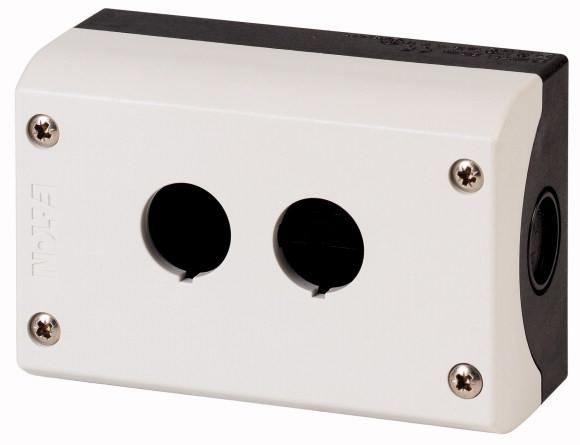

Surface-mounted housing, housing: plastic, with stainless steel screws, installation points: 2, cable entry: rear: 2 x M20, top: 1 x M20, side: 2 x M20/M25 (1 x each side), protection class: IP66, IP67, IP69K, color RAL value: RAL 7035, color: housing base anthracite, connection to SmartWire-DT: no, can be used for: (illuminated) push buttons, (illuminated) selector buttons, key buttons, indicator lights, EMERGENCY STOP/EMERGENCY OFF buttons with yellow label
| Property | Value |
| Housing design: | Surface-mounted housing |
| Number of command points: | 2 |
| Diameter of openings: | 22.5 mm |
| Color of housing top: | gray |
| Housing material: | plastic |
| Protection class (IP): | IP67/IP69K |
| Height: | 56 mm |
| Depth: | 80 mm |
| Width: | 120 mm |
| Protection class (NEMA): | 4X |
Features
HAB
M22-I2
Manufacturer
HAN
216537
GTIN
4015082165376
Number of command posts
2
Width
120 mm
Housing design
Surface-mounted housing
Height
56 mm
IP protection)
IP67/IP69K
Protection class (NEMA)
4X
Depth
80 mm
Housing material
Plastic
