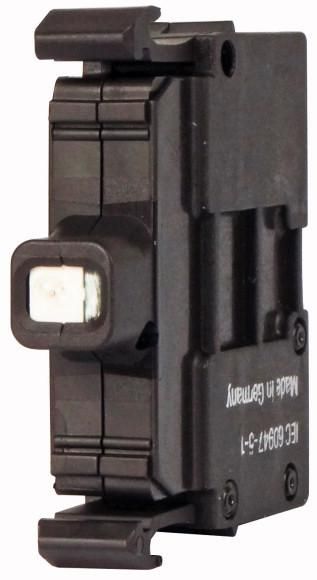

LED element, range: additional equipment, single device, fastening: front fastening, connection technology: screw terminals, rated operating voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, rated operating current: Ie= 8 - 15 mA, power consumption: Pmax.= 0.26 W, at 24 V, color: white, protection class: IP20, connection to SmartWire-DT: no, standards and regulations: IEC 60947-5-1
| Property | Value |
| Color of the lamp: | white |
| Rated operating voltage Ue at AC 50 Hz: | 12 to 30 V |
| Rated operating voltage Ue at AC 60 Hz: | 12 to 30 V |
| Rated operating voltage Ue at DC: | 12 to 30 V |
| Voltage type for actuation: | AC/DC |
| Socket: | without |
| Connection type auxiliary circuit: | screw connection |
| Mounting type: | front mounting |
| With integrated series resistor: | no |
| With integrated diode: | yes |
| Transformer integrated: | no |
| With light source: | yes |
| Light source: | LED |
Features
Color of the lamp
White
HAB
M22-LED-W
Manufacturer
HAN
216557
GTIN
4015082165574
Connection type auxiliary circuit
Screw connection
Mounting type
Front mounting
Version
Without
Lamps
LED
With light source
Yes
Voltage type for actuation
AC/DC
