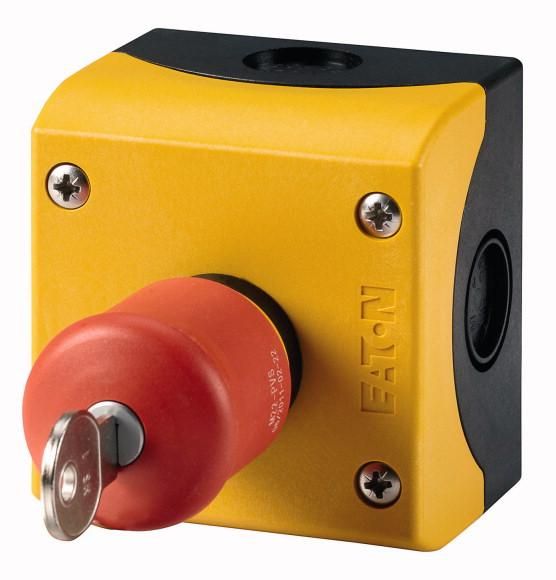

Housing, product range: RMQ-Titan, complete device, design: mushroom shape, diameter: 38 mm, unlit, key release, connection type: screw connection, description: tamper-proof according to ISO 13850/EN 418, command points: 1 number, color of mushroom plunger: red, color of housing cover: yellow, protection class: IP66, IP67, IP69K, connection to SmartWire-DT: no, contact configuration Ö = normally closed: 1 Ö, contact configuration S = normally open: 1 S, contact configuration Note = safety function, through positive opening according to IEC/EN 60947-5-1, travel of the operating part and actuation force according to DIN EN 60947-5-1, K.5.4.1 positive opening travel: mm 4.8, maximum travel: mm 5.7, minimum force for positive opening: N 20, positive opening (ZW): yes, front dimensions: 35, information included in delivery: 1 key included in delivery, standards and regulations: IEC/EN 60947,0660, installation position: any
| Property | Value |
| Number of contacts as normally open: | 1 |
| Number of contacts as normally closed: | 1 |
| Color of the upper part of the housing: | yellow |
| Suitable for EMERGENCY STOP: | yes |
| Number of command points: | 1 |
| Number of mushroom buttons: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 115 to 500 V |
| Rated control supply voltage Us at AC 60 Hz: | 115 to 500 V |
| Rated control supply voltage Us at DC: | 24 to 220 V |
| Housing material: | Plastic |
| Protection class (IP): | IP67/IP69K |
