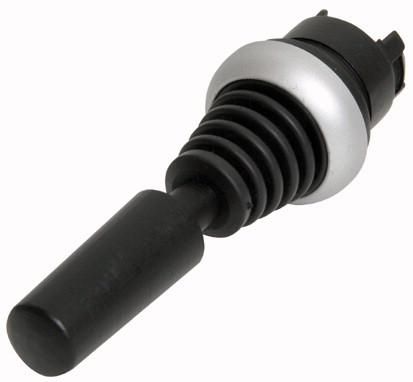

Joystick, range: RMQ-Titan, single device, description: with 2 switching points per actuation direction, with plastic axis, 4 positions, protection class: IP66, front ring titanium, connection to SmartWire-DT: no, front dimensions: - not specified -, function: momentary, notes: these joysticks are combined with normal closer M22-K10 and early closer M22-K10P., standards and regulations: IEC/EN 60947,0660
| Property | Value |
| Number of actuation directions: | 4 |
| Joystick length: | 75 mm |
| With return to zero position: | yes |
| Analog output signal configurable: | no |
| Central mounting, hole diameter: | 22.5 mm |
| Locking in zero position: | no |
| Code transmitter: | no |
| Protection class (IP): | IP66 |
| With front ring: | yes |
| Front ring material: | Plastic |
Features
HAB
M22-WJ4-2P
Manufacturer
HAN
110836
GTIN
4015081103676
With front ring
Yes
With retraction to zero position
Yes
IP protection)
IP66
Front ring material
Plastic
