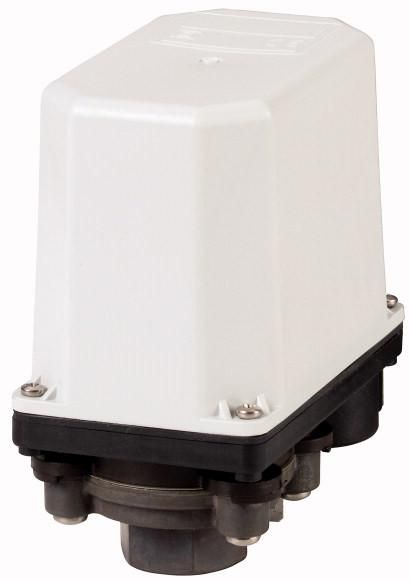

IEC EN 60947-5-1, IP65, pressure monitoring of liquid and gaseous media, e.g. compressed air, for controlling auxiliary circuits, switch-on and switch-off pressure can be set separately
| Property | Value |
| Number of auxiliary contacts as changeover contacts: | 1 |
| Design of the electrical connection: | Screw connection |
| Switching-off pressure: | 0 to 22 bar |
| Rated operating voltage Ue at AC 50 Hz: | 0 to 230 V |
| Rated operating voltage Ue at AC 60 Hz: | 0 to 230 V |
| Rated operating voltage Ue at DC: | 0 to 110 V |
| Burst pressure: | 90 bar |
| Switch-on pressure: | 0 to 21 bar |
| Electronic version: | no |
| Explosion-proof: | no |
| Suitable as 2-point controller: | yes |
| Suitable as limiter: | no |
| Suitable as monitor: | yes |
| Max. Test pressure: | 32 bar |
| Medium temperature: | 25 to 80 °C |
| With manual operation: | no |
| Protection class (IP): | IP65 |
| With manual on/off switch: | no |
| Connection: | Internal thread gas cylindrical (BSPP) |
| Thread size: | 1/2 inch |
| With display: | no |
| Protection class (NEMA): | other |
| Height: | 111 mm |
| Width: | 60 mm |
| Depth: | 96 mm |
Features
Number of auxiliary contacts as changeover contacts
1
HAB
MCS22
Manufacturer
HAN
098019
GTIN
4015080980193
Design of the electrical connection
Screw connection
Width
60 mm
Explosion-proof
No
Height
111 mm
With display
No
IP protection)
IP65
Protection class (NEMA)
Other
Depth
96 mm
