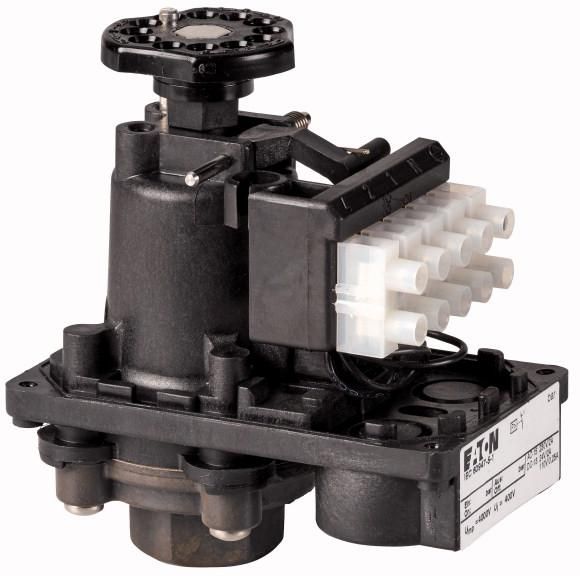

Pressure switch, 1 W, 7 bar,
Eaton Type: MCS4-U
Eaton Article No.: 088612
| Property | Value |
| Number of auxiliary contacts as changeover contacts: | 1 |
| Design of the electrical connection: | Screw connection |
| Switch-off pressure: | 0 to 4.5 bar |
| Rated operating voltage Ue at AC 50 Hz: | 0 to 230 V |
| Rated operating voltage Ue at AC 60 Hz: | 0 to 230 V |
| Rated operating voltage Ue at DC: | 0 to 110 V |
| Burst pressure: | 90 bar |
| Switch-on pressure: | 0 up to 4.2 bar |
| Adjustable current range: | 0 A |
| Electronic design: | no |
| Explosion-proof: | no |
| Suitable as a 2-point controller: | yes |
| Suitable as a limiter: | no |
| Suitable as a monitor: | yes |
| Max. Test pressure: | 32 bar |
| Medium temperature: | -25 to 80 °C |
| With manual operation: | no |
| Protection class (IP): | IP65 |
| Initial setting: | 0 hPa |
| Final setting: | 0 hPa |
| Max. Working pressure: | 7000 hPa |
| With manual on/off switch: | no |
| Connection: | Internal thread cylindrical (BSPP) |
| Thread size: | 1/2 inch |
| With display: | no |
| Protection class (NEMA): | other |
| Height: | 111 mm |
| Width: | 60 mm |
| Depth: | 96 mm |
Features
Number of auxiliary contacts as changeover contacts
1
Adjustable current range
0 A
HAB
MCS4-U
Manufacturer
HAN
088612
GTIN
4015080886129
Design of the electrical connection
Screw connection
Width
60 mm
Explosion-proof
No
Height
111 mm
With display
No
IP protection)
IP65
Protection class (NEMA)
Other
Depth
96 mm
