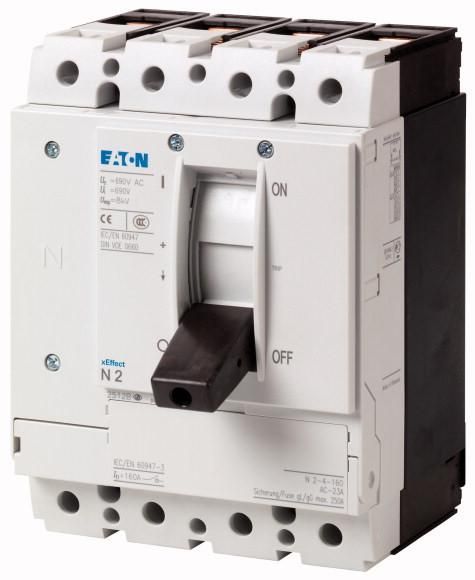

Load-break switches N..DC in the special version for up to 1500VDC can be used with 1 or 2 poles. They also meet the isolating properties for earthed IT networks. Accessories such as bridge kits, connection terminals and door coupling rotary handles allow individual installation in a wide variety of distribution systems. Auxiliary switches, voltage releases and remote drives enable signaling and automation. Notes: Main switch properties including positive operation in accordance with IEC/EN 60204 and 0113. Disconnector properties in accordance with IEC/EN 60947-3 and 0660. Connection technology: For 2-pole switching, a series connection is required in accordance with the specified connection options. See accessories bridge kits. Switches cannot be combined with plug-in/withdrawable technology and/or rear connection.
| Property | Value |
| Number of poles: | 4 |
| Rated continuous current Iu: | 250 A |
| Version as EMERGENCY STOP device: | yes |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | Screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | Toggle lever |
| Suitable for floor mounting: | yes |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | yes |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | yes |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | yes |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 3.6 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 1000 V |
| Number of switches: | 1 |
