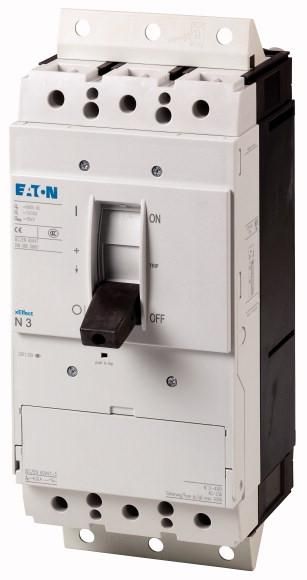

The NZM series circuit breakers cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups.
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 200 kW |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | yes |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | screw connection |
| Device design: | Built-in device plug-in technology |
| Design of the actuating element: | toggle lever |
| Suitable for floor mounting: | yes |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | no |
| Version as Maintenance/repair switch: | yes |
| Voltage release optional: | yes |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | yes |
| Suitable for distribution board installation: | yes |
| Design as main switch: | yes |
| Design as safety switch: | no |
| Motor drive optional: | yes |
| Lockable: | yes |
| Design as reversing switch: | no |
| Rated short-time withstand current Icw: | 12 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 690 V |
| Number of switches: | 1 |
| Protection class (NEMA): | other |
Features
HAB
N3-400-SVE
Manufacturer
HAN
168544
GTIN
4015081650194
Connection type main circuit
Screw connection
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
Yes
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Rocker arm
Rated operational power at AC-23, 400 V
200kW
Rated operating voltage
690V
Rated short-time withstand current Icw
12kA
Color of the actuator
Black
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
Yes
Device type
Built-in device plug-in technology
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
Yes
Number of poles
3
Protection class (IP), front
IP20
Protection class (NEMA)
Other
Voltage release optional
Yes
Lockable
Yes
