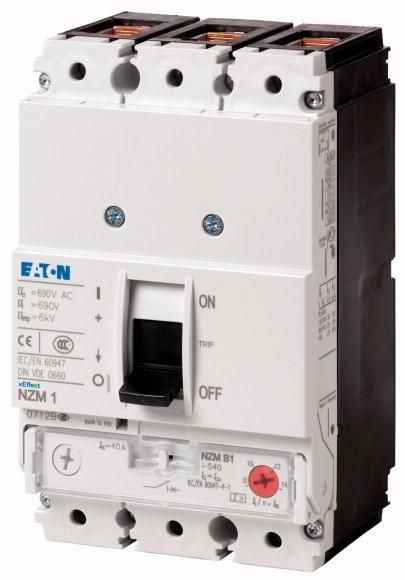

The circuit breakers of the NZM..-S..CNA series cover all applications with just four compact sizes and are suitable for worldwide use. Installation is always flexible thanks to modular function groups. With magnetic short-circuit release in conjunction with motor protection relay, with short-circuit release without overload release. Notes: Switches comply with both UL/CSA and IEC regulations. IEC switching capacity values are included on the rating plate.
| Property | Value |
| Number of poles: | 3 |
| Rated operating voltage: | 440 V |
| Rated operating power at AC-3, 230 V: | 4 kW |
| Rated operating power at AC-3, 400 V: | 7.5 kW |
| Rated continuous current Iu: | 18 A |
| Rated ultimate short-circuit breaking current Icu at 400 V, AC: | 25 kA |
| Tripping technology: | magnetic |
| Phase failure sensitive: | no |
| Connection type main circuit: | other |
| Device design: | Built-in device, fixed installation technology |
| Protection class (IP): | IP20 |
| Width: | 90 mm |
| Setting range of the instantaneous short-circuit release: | 126 to 216 A |
| With integrated auxiliary switch: | no |
| With integrated undervoltage release: | no |
| Height: | 165.5 mm |
| Depth: | 88 mm |
| Type of actuating element: | Toggle lever |
| With thermal protection: | no |
Features
HAB
NZMB1-S18-CNA
Manufacturer
HAN
103022
GTIN
4015081028610
Connection type main circuit
Other
Design of the actuating element
Rocker arm
Triggering technology
Magnetic
Rated operating power at AC-3, 230 V
4kW
Rated operational power at AC-3, 400 V
7.5kW
Rated operating voltage
440V
Rated continuous current Iu
18 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC
25kA
Width
90 mm
Setting range of the instantaneous short-circuit release
126 to 216 A
Device type
Built-in device Fixed installation technology
Height
165.5 mm
With integrated auxiliary switch
No
With integrated undervoltage release
No
With thermal protection
No
Sensitive to phase failure
No
Number of poles
3
IP protection)
IP20
Depth
88 mm
