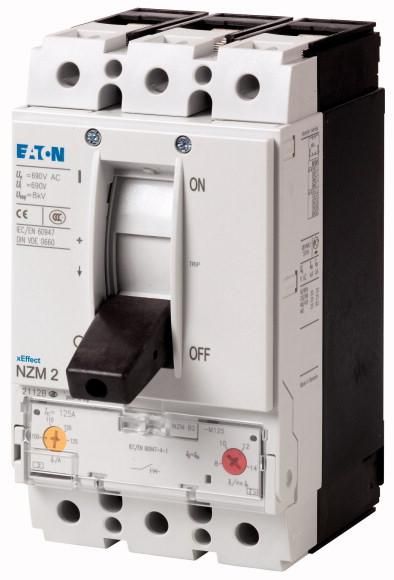

The NZM series circuit breakers cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups.
| Property | Value |
| Number of poles: | 3 |
| Rated operating voltage: | 440 V |
| Rated operating power at AC-3, 230 V: | 37 kW |
| Rated operating power at AC-3, 400 V: | 55 kW |
| Rated continuous current Iu: | 125 A |
| Rated short-circuit breaking current Icu at 400 V, AC: | 25 kA |
| Overload release current setting: | 100 to 125 A |
| Triggering technology: | thermomagnetic |
| Phase failure sensitive: | no |
| Connection type main circuit: | other |
| Device design: | Built-in device, fixed installation technology |
| Protection class (IP): | IP20 |
| Width: | 140 mm |
| Setting range of the instantaneous short-circuit release: | 1000 to 1750 A |
| With integrated auxiliary switch: | no |
| With integrated undervoltage release: | no |
| Height: | 206 mm |
| Depth: | 149 mm |
| Design of the actuating element: | toggle lever |
| With thermal protection: | yes |
Features
HAB
NZMB2-M125-BT
Manufacturer
HAN
115260
GTIN
4015081146604
Connection type main circuit
Other
Design of the actuating element
Rocker arm
Triggering technology
Thermomagnetic
Rated operating power at AC-3, 230 V
37kW
Rated operational power at AC-3, 400 V
55kW
Rated operating voltage
440V
Rated continuous current Iu
125A
Rated ultimate short-circuit breaking current Icu at 400 V, AC
25kA
Width
140 mm
Setting range of the instantaneous short-circuit release
1000 to 1750 A
Device type
Built-in device Fixed installation technology
Height
206 mm
With integrated auxiliary switch
No
With integrated undervoltage release
No
With thermal protection
Yes
Sensitive to phase failure
No
Number of poles
3
IP protection)
IP20
Depth
149 mm
Overload release current setting
100 to 125 A
