The NZM series circuit breakers cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups.
| Property | Value |
| Number of poles: | 3 |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 230 V: | 22 kW |
| Rated operating power at AC-3, 400 V: | 45 kW |
| Rated continuous current Iu: | 90 A |
| Rated ultimate short-circuit breaking current Icu at 400 V, AC: | 130 kA |
| Overload release current setting: | 45 to 90 A |
| Triggering technology: | electronic |
| Phase failure sensitive: | yes |
| Connection type main circuit: | screw connection |
| Device design: | Built-in device plug-in technology |
| Protection class (IP): | IP20 |
| Width: | 105 mm |
| Setting range of the instantaneous short-circuit release: | 180 to 1260 A |
| With integrated auxiliary switch: | no |
| With integrated undervoltage release: | no |
| Height: | 245 mm |
| Depth: | 180 mm |
| Design of the actuating element: | toggle lever |
| With thermal protection: | yes |
Features
HAB

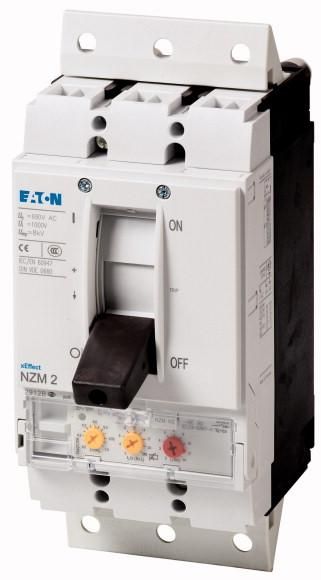

NZML2-ME90-SVE
Manufacturer
HAN
169025
GTIN
4015081655182
Connection type main circuit
Screw connection
Design of the actuating element
Rocker arm
Triggering technology
Electronic
Rated operating power at AC-3, 230 V
22kW
Rated operational power at AC-3, 400 V
45kW
Rated operating voltage
690V
Rated continuous current Iu
90A
Rated ultimate short-circuit breaking current Icu at 400 V, AC
130kA
Width
105 mm
Setting range of the instantaneous short-circuit release
180 to 1260 A
Device type
Built-in device plug-in technology
Height
245 mm
With integrated auxiliary switch
No
With integrated undervoltage release
No
With thermal protection
Yes
Sensitive to phase failure
Yes
Number of poles
3
IP protection)
IP20
Depth
180 mm
Overload release current setting
45 to 90 A
