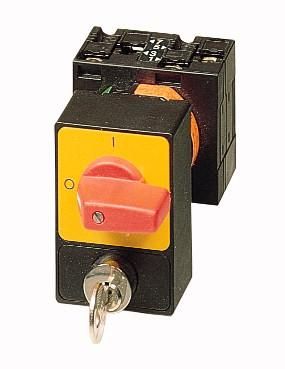

Panic switch, range: switches with locking devices, type code: P1, STOP function: EMERGENCY STOP function, with red toggle and yellow front plate, information on the scope of delivery: auxiliary switch contact or neutral conductor can be retrofitted., with 2 keys, 3-pole, locking device: cylinder lock SVA, note: if the key is removed in position 1, the switch can still be switched off, but cannot be switched on again without the key., lockability: lockable in 0 position, protection class: front IP65, design: built-in, switching angle: 90 °, switching behavior: latching, front plate: 0-1, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, rated continuous current: Iu = 32 A, standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, load disconnector according to IEC/EN 60947-3
| Property | Value |
| Number of poles: | 3 |
| Rated operational power at AC-23, 400 V: | 15 kW |
| Rated continuous current Iu: | 32 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | short rotary handle |
| Suitable for floor mounting: | no |
| Conditional rated short-circuit current Iq: | 80 kA |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | yes |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 0.64 kA |
| Color of the actuating element: | red |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 13 kW |
| Switching capacity at 400 V: | 15 kW |
| Rated continuous current at AC-21, 400 V: | 32 A |
| Number of Switch: | 1 |
| Rated continuous current at AC-23, 400 V: | 32 A |
| Protection class (NEMA): | 12 |
