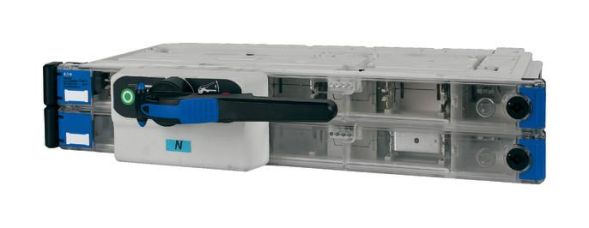

Fuse switch disconnector, design: base strip, 3 transformers, class 1, current transformer (primary current): 150A, current transformer (secondary current): 1A, transformer wiring on plug strip, plug strip for auxiliary current wiring, auxiliary switch for switch position indicator NC+NO
| Property | Value |
| Rated continuous current Iu: | 160 A |
| Protection class (IP), front: | IP40 |
| Number of poles: | 4 |
| Design as main switch: | no |
| Design of the actuating element: | long rotary handle |
| Connection type main circuit: | clamping bracket |
| Suitable for front mounting: | yes |
| Suitable for floor mounting: | no |
| With fuse monitoring: | no |
| Version as EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 55 kA |
| Version as safety switch: | no |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Suitable for busbar construction: | yes |
| Suitable for fuse links: | NH00 |
| Position of the actuating element: | front |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Cable entry: | side |
| Equipped with connectors: | yes |
Features
HAB
PIFT0L431C151CCA 4-pin NH00 AC22
Manufacturer
HAN
163693
GTIN
4015081602230
Connection type main circuit
Clamp
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Design of the actuating element
Long rotary handle
Conditional rated short-circuit current Iq
55kA
Rated continuous current Iu
160A
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for busbar construction
Yes
Suitable for fuse inserts
NH00
Cable entry
Page
Max. rated operating voltage Ue at AC
690V
With fuse monitoring
No
Equipped with connectors
Yes
Motor drive integrated
No
Motor drive optional
Yes
Number of poles
4
Position of the actuator
In front
Protection class (IP), front
IP40
