Electronic trip unit for motor protection according to IEC60947-4-1 for basic device PKE12 / PKE32, electronic wide-range overload protection (4:1), phase failure and asymmetry protection, adjustable trip class. Interface for connection to SmartWire-DT for decentralized control and evaluation (status, trip messages, power consumption). World market device, ATEX approval
| Property | Value |
| Starting value of the instantaneous short-circuit release setting range: | 46.5 A |
| Ending value of the instantaneous short-circuit release setting range: | 186 A |
| Rated continuous current Iu: | 12 A |
| Overload release current setting: | 3 to 12 A |
| Number of poles: | 3 |
| Short-circuit release function: | delayed |
| Voltage type for actuation: | self-supplied |
| With Earth fault protection function: | no |
| Motor protection design: | electronic release |
Features
End value of the undelayed short-circuit release setting range
186 A
Initial value of the undelayed short-circuit release setting range
46.5 A
HAB

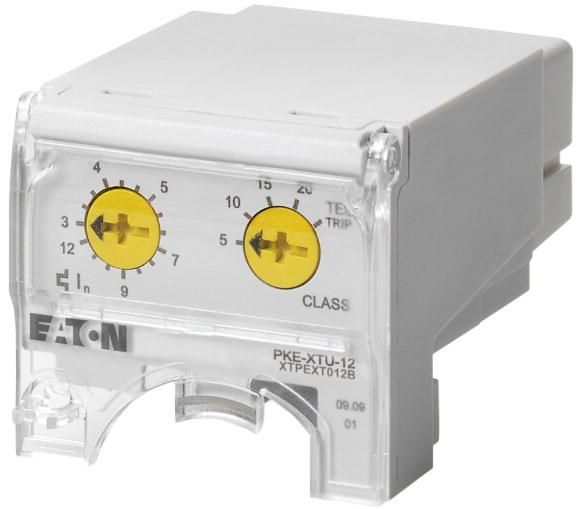

PKE-XTUA-12 3-12A Advanced
Manufacturer
HAN
121729
GTIN
4015081195398
Rated continuous current Iu
12A
Number of poles
3
Voltage type for actuation
Self-sufficient
Overload release current setting
3 to 12 A
