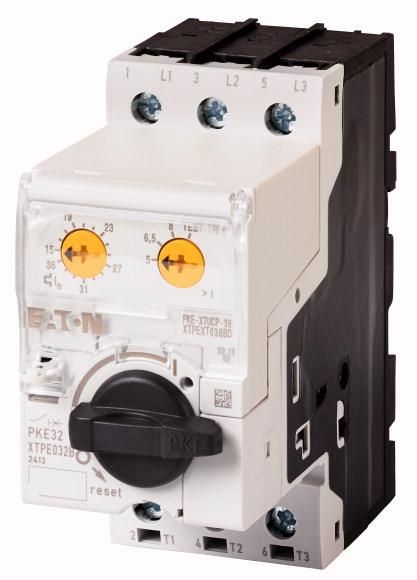

Circuit breaker for system protection according to IEC 60947-2 consisting of basic device PKE32 and electronic trip unit PKE-XTUCP-36. Adjustable electronic wide-range overload protection (2.4:1), adjustable short-circuit release
Property | Value |
Rated continuous current Iu: | 36 A |
Connection type main circuit: | Screw connection |
Number of poles: | 3 |
Device design: | Built-in device, fixed installation technology |
Position of connection for main circuit: | other |
Protection class (IP): | IP20 |
Overload release current setting: | 15 to 36 A |
Setting range of the short-time delayed short-circuit release: | 75 to 288 A |
Setting range of the instantaneous short-circuit release: | 496 A |
Rated voltage: | 690 V |
Rated short-circuit breaking current Icu at 400 V, 50 Hz: | 50 kA |
Suitable for DIN rail mounting: | yes |
Design of the actuating element: | Rotary knob |
Integrated earth fault protection: | no |
Motor drive integrated: | no |
Motor drive optional: | no |
With trip detector: | no |
Complete device with protection unit: | yes |
DIN rail mounting optional: | yes |
Features
HAB
PKE32/XTUCP-36 15..36A
Manufacturer
HAN
168972
GTIN
4015081654635
Connection type main circuit
Screw connection
Design of the actuating element
Rotary knob
Rated continuous current Iu
36 A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz
50kA
Rated voltage
690V
Setting range of the short-time delayed short-circuit release
75 to 288 A
Setting range of the instantaneous short-circuit release
496 A
Suitable for DIN rail mounting
Yes
Device type
Built-in device Fixed installation technology
DIN rail mounting optional
Yes
Integrated earth fault protection
No
Complete device with protection unit
Yes
With trip detector
No
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Position of the connection for main circuit
Other
IP protection)
IP20
Overload release current setting
15 to 36 A
