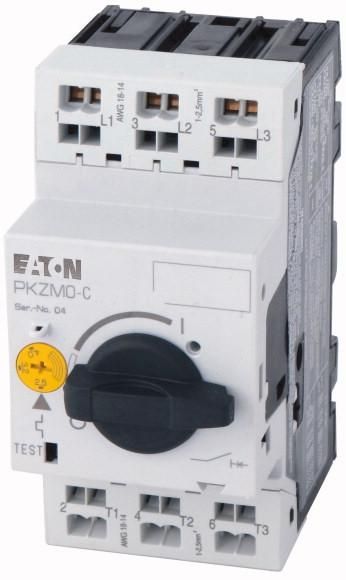

Motor protection switch according to IEC/EN60947, 3-pole, size PKZM0, with adjustable overload and instantaneous short-circuit release, sensitive to phase failure, screw and snap-on mounting, with spring-loaded terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release, switching drive, clip plate
| Property | Value |
| Number of poles: | 3 |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 230 V: | 0.25 kW |
| Rated operating power at AC-3, 400 V: | 0.55 kW |
| Rated continuous current Iu: | 1.6 A |
| Rated ultimate short-circuit breaking current Icu at 400 V, AC: | 150 kA |
| Overload release current setting: | 1 to 1.6 A |
| Triggering technology: | thermomagnetic |
| Phase failure sensitive: | yes |
| Connection type main circuit: | spring-loaded connection |
| Device design: | Built-in device, fixed installation technology |
| Protection class (IP): | IP20 |
| Width: | 45 mm |
| Setting range of the instantaneous short-circuit release: | 25 A |
| With integrated auxiliary switch: | no |
| With integrated undervoltage release: | no |
| Height: | 93 mm |
| Depth: | 76 mm |
| Design of the operating element: | Rotary knob |
| With thermal protection: | no |
Features
HAB
PKZM0-1,6-C
Manufacturer
HAN
229674
GTIN
4015082296742
Connection type main circuit
Spring-loaded connection
Design of the actuating element
Rotary knob
Triggering technology
Thermomagnetic
Rated operating power at AC-3, 230 V
0.25kW
Rated operational power at AC-3, 400 V
0.55kW
Rated operating voltage
690V
Rated continuous current Iu
1.6A
Rated ultimate short-circuit breaking current Icu at 400 V, AC
150kA
Width
45 mm
Setting range of the instantaneous short-circuit release
25A
Device type
Built-in device Fixed installation technology
Height
93 mm
With integrated auxiliary switch
No
With integrated undervoltage release
No
With thermal protection
No
Sensitive to phase failure
Yes
Number of poles
3
IP protection)
IP20
Depth
76 mm
Overload release current setting
1 to 1.6 A
