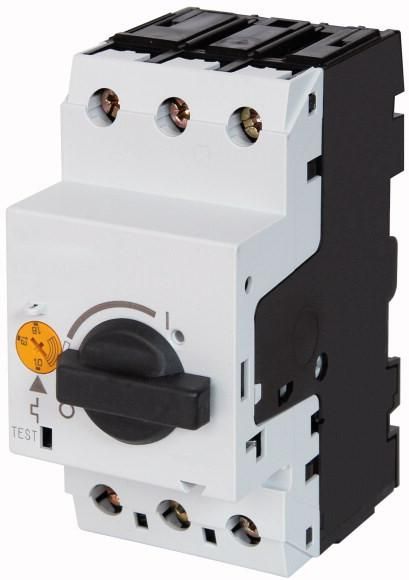

Motor protection switch, 3-pole, Ir = 4 - 6.3 A, spring-loaded connection, bulk pack
Eaton Type: PKZM0-6.3-C-GVP2
Eaton Article No.: 100807
| Property | Value |
| Number of poles: | 3 |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 230 V: | 1.1 kW |
| Overload release current setting: | 6.3 A |
| Rated operating power at AC-3, 400 V: | 2.2 kW |
| Rated continuous current Iu: | 6.3 A |
| Tripping technology: | thermomagnetic |
| Phase failure sensitive: | yes |
| Connection type main circuit: | Spring-loaded connection |
| Device design: | Built-in device, fixed installation technology |
| Setting range of the instantaneous short-circuit release: | 98 A |
| Rated short-circuit breaking current Icu at 400 V, AC: | 150 kA |
| With integrated auxiliary switch: | no |
| With integrated undervoltage release: | no |
| Protection class (IP) : | IP20 |
| Width: | 45 mm |
| Height: | 93 mm |
| Depth: | 76 mm |
| Design of the operating element: | Rotary knob |
| With thermal protection: | yes |
Features
HAB
PKZM0-6,3-C-GVP2
Minimal order
27 Pieces
Manufacturer
HAN
100807
GTIN
4015081007066
Connection type main circuit
Spring-loaded connection
Design of the actuating element
Rotary knob
Triggering technology
Thermomagnetic
Rated operating power at AC-3, 230 V
1.1kW
Rated operational power at AC-3, 400 V
2.2kW
Rated operating voltage
690V
Rated continuous current Iu
6.3 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC
150kA
Width
45 mm
Setting range of the instantaneous short-circuit release
98 A
Device type
Built-in device Fixed installation technology
Height
93 mm
With integrated auxiliary switch
No
With integrated undervoltage release
No
With thermal protection
Yes
Sensitive to phase failure
Yes
Number of poles
3
Depth
76 mm
Overload release current setting
6.3 A
