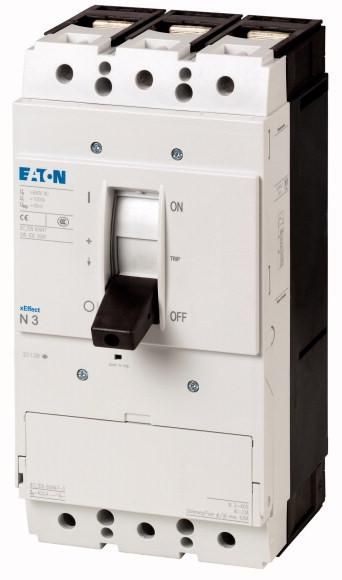

Load-break switches PN..-.. also meet the isolating properties for earthed IT networks. Accessories such as bridge kits, connection terminals and door coupling rotary handles allow individual installation in a wide variety of distribution systems. PN types not suitable for remote function. Notes: Main switch properties including positive operation in accordance with IEC/EN 60204 and 0113. Disconnecting properties in accordance with IEC/EN 60947-3 and 0660. Contact protection in accordance with 0160 Part 100.
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 315 kW |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | yes |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | Box terminal |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | Toggle lever |
| Suitable for floor mounting: | yes |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | no |
| Version as Maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | yes |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 12 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 690 V |
| Number of switches: | 1 |
Features
HAB
PN3-630-BT
Manufacturer
HAN
110315
GTIN
4015081098637
Connection type main circuit
Frame clamp
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
Yes
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Rocker arm
Rated operational power at AC-23, 400 V
315kW
Rated operating voltage
690V
Rated short-time withstand current Icw
12kA
Color of the actuator
Black
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
Yes
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Protection class (IP), front
IP20
Voltage release optional
No
Lockable
Yes
